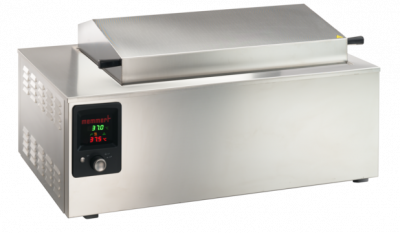

Waterbath WNE 14
The combination of corrosion-resistant stainless steel, precise electronics and multiple temperature protection guarantees the highest level of safety in the laboratory.
Temperature
Temperature range in °Cmin. 5°C above ambient up to +95°C with additional boiling mode (+100°C)
resolution of display and setting accuracy0,1°C up to +99,9°C / 1°C from 100°C
Control of standard components
Controllerdigital display (LED) of all set parameters, such as temperature and alarm values (0,1°C resolution) as well as time values
Timerdigital timer from 1 min. up to 999 hours for: ON (continuous operation), DELAYED ON, HOLD or HOLD set-temperature dependent with guaranteed holding time
Calibrationon controller
Safety
Temperature control2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
Temperature controlmechanical temperature limiter TB protection class 1 switching the heating off at approx. 30°C above max. temperature of the bath
Temperature controlindependently working, electronic overtemperature controller TWW protection class 3.1 or overtemperature limiter TWB protection class 2, adjustable in set-up menu by customer
Temperature controlin case of overtemperature due to failure, the heating is switched off at approx. 10°C above the set temperature (fixed value)
Autodiagnostic systemfuzzy-supported PID microprocessor controller with integrated autodiagnostic system with fault indication
Alarmvisual and acoustic alarm at programme end and as input acknowledgement as well as in case of low liquid level, heating is switched off automatically
Heating concept
Heating Bathscorrosion-proof large-area heating on three sides
Stainless steel interior
Dimensions W x H x D in mmw(A) x h(C) x d(B): 350 x 140 x 290 mm
Interioreasy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded
Volume14 l
Liquid level min.(H) 97 mm
Liquid level max.(I) 120 mm
Textured stainless steel casing
Dimensionsw(D) x h(G) x d(E): 578 x 347 x 436 mm
Electrical data
Voltage230 V, 50/60 Hz
Electrical loadapprox. 1800 W (during heating)
Ambient conditions
InstallationThe vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.
Ambient temperature+5 °C to +40 °C
Humidity rhmax. 80 %, non-condensing
Overvoltage categoryII
Pollution degree2
Packing/shipping data
Transport informationThe appliances must be transported upright
Dimensions approx incl. cartonw x h x d: 670 x 530 x 400 mm
