Megger DDA-6000

PRODUCT DESCRIPTION

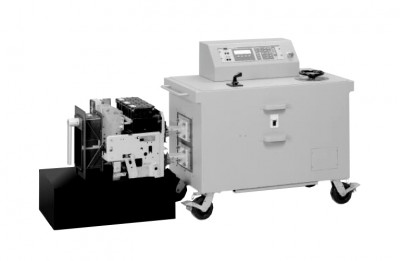

The Megger DDA-6000 is a universal circuit breaker test set which offers the latest in digital data acquisition instrumentation and control systems. The DDA-6000 is designed specifically to test low-voltage power and molded-case circuit breakers equipped with thermal, magnetic or solid-state trip devices. The unique transformer and circuit design results in a very high-capacity test set in a very compact size. Advanced digital control and instrumentation provides exact testing capacity. The test sets can also be used for other high current applications, such as verifying the ratio of current transformers and performing heat runs or primary injection testing of high-voltage breakers and their associated protective relays. Input Voltage: 460 V, single-phase. Maximum Instantaneous Output Current: 60,000 A.

The top features of the Megger DDA-6000 circuit breaker test set are:

• Model DDA-1 Digital Data Acquisition Instrumentation and Control System
• High-current output: 60,000 A for Model DDA 6000
• Digital signal processing (DSP) technology
• Variable pulse time and firing angle output current control
• Compliant with NEMA AB-4 test guidelines

Specifications

• Output Current: Max Continuous - 6250 A, Max Instantaneous - 60,000 A
• Input Voltage: 460 V, 3150 A
• Weight: 1200 lbs.
