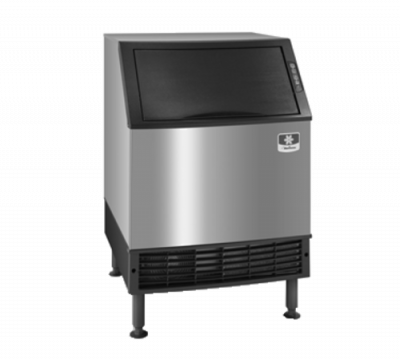

The Manitowoc UDF-0240A NEO® undercounter ice maker has front buttons that indicate different modes and uses, including full bin and service indicators. With a storage capacity of 90 pounds, the ice machine can make as much as 215 pounds of ice daily. Each ice cube measures 0.875 inch by 0.875 inch by 0.875 inch and is ideal for drinks in bars and restaurants because ice production can be delayed during slow hours.
The food zone houses components that come in contact with water and ice and has removable parts. An antimicrobial agent on the parts slows bacteria, slime, and mold growth to facilitate cleaning. For installation next to a wall and other equipment, the Manitowoc UDF-0240A undercounter ice machine has vents in the front for air to flow in and out.
ADDITIONAL INFORMATION
Product Details
- 215-lb. daily ice production capacity
- 160-lb. AHRI-certified daily ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- 90-lb. storage capacity
- Air-cooled condenser
- Full bin and service indicators are visible on the front
- Ice production can be delayed during slow periods
- Removable food zone components facilitate cleaning
- Internal components are made with AlphaSan antimicrobial for bacteria protection
- Front-breathing design enables installation against a wall and other equipment
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 45-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 2,700 average BTU; 3,300 peak BTU
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 7 A, 7.9 kW, 1⁄3 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 215 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°) 90 lbs ice storage capacity, electronic controls, dice size cubes, 6" adjustable legs with flanged feet (painted gray), 1/3 HP, NSF, cULus, CE, 115v/60/1ph
