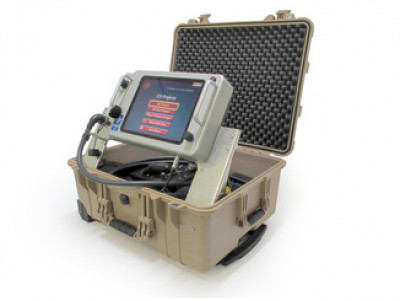

The MALA CX-12 ground penetrating radar for secure and easy scanning of the concrete. Designed for the non-destructive investigation and imaging of concrete and other structures. Three different modes are present of the system such as 2D, 3D or object mapper, and present the data clearly for real-time and in-the-box acquisition and analysis. It has an ergonomic design and rugged construction.
ADDITIONAL INFORMATION
Features include minimal set-up for fast start-up, LINUX OS for fast and reliable processing, enhanced workflow, stand-alone Windows processing software, supports 50/60 Hz functionality, hyperbola fitting tool for velocity calibration, remotely operation capability with the buttons on the antenna. Suitable for measuring the depth of cover or slab thickness, measure the layer thickness, locate and map reinforcing support structure, locate non-metallic objects such as heating/water pipes, quality assessment, quality control, and void detection. It has the combination of the GPR with electromagnetic (EM) technology by a fully integrated 50/60 Hz sensor.
System specifications include 6 hours of operating time, IP65 environmental rating, 10.4 in. color TFT transmissive LCD, 56 x 46 x 26 cm dimension and operating temperature ranging from -20 to +50 degrees C.
SPECIFICATION OVERVIEW:
Minimal set-up for fast start-up
LINUX OS for fast and reliable processing
Enhanced workflow
Stand-alone Windows processing software
Supports 50/60 Hz functionality
Hyperbola fitting tool for velocity calibration
Remotely operation capability with the buttons on the antenna
