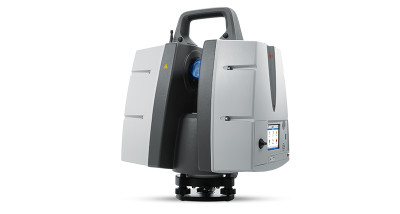

Leica Geosystems ScanStation P50

DESCRIPTION

For industry professionals looking to scan inaccessible places and find new business opportunities, Leica ScanStation P50 is the fastest and safest, long range 3D laser scanner. Unlike any other laser scanner, the P50 solution maximises productivity by scanning inaccessible places at a safe position on site, reducing time in the field with less setups.

ADDITIONAL INFORMATION

• Accuracy of single measurement *

Range accuracy:  1.2 mm + 10ppm over full range (120 m / 270m mode)

• 3 mm + 10ppm over full range (570 m / >1 km mode)

Angular accuracy 8” horizontal; 8” vertical
Target acquisition ** 2 mm standard deviation at 50 m

Environmental

• Operating temperature –20°C to +50°C / –4°F to +122°F
• Storage temperature –40°C to +70°C / –40°F to +158°F
• Humidity 95 %, non-condensing
• Dust/Water Solid particle/liquid ingress protection IP54 (IEC
• 60529)

Range and reflectivity

• Minimum range 0.4

Maximum range mode Reflectivity

• 120 m 8%
• 270 m 34%
• 570 m 60%
• >1 km 80%

Scan rate Up to 1,000,000 points per second

Field-of-View

• Horizontal 360°
• Vertical 290°

Data storage capacity

• 256 GB internal solid-state drive (SSD) or external USB device

Communications / Data transfer

• Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device

Onboard display

• Touchscreen control with stylus, full colour VGA graphic display (640 × 480 pixels)

Laser plummet

• Laser class 1 (IEC 60825:2014)
• Centring accuracy: 1.5 mm at 1.5 m
• Laser dot diameter: 2.5 mm at 1.5 m
• Selectable ON/OFF
