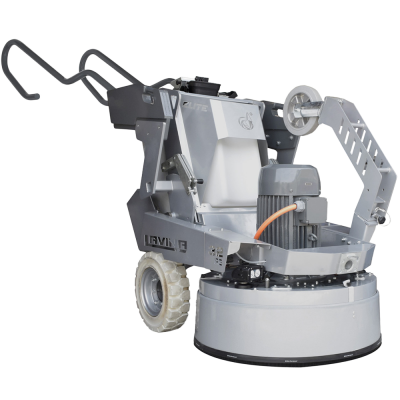

Lavina L3213REB Remote-Controlled Floor Grinder

PRODUCT DESCRIPTION

Lavina® 32 Elite Remote Controlled Planetary Grinding and Polishing Machine 20HP(15kW) 3ph 200-240V 60Amps width 32"(81cm)
NEW Intelligent REMOTE CONTROL Precise control over the machine - two sensitive thumbsticks control its position and offset, including integrated mapping on the offset. A wide range of functions. Super light and easy to use with ergonomic rubber grip.
INTUITIVE TOUCHSCREEN PANEL / HMI Superabrasive's new HMI provides essential operating information and implements operators’ instructions.

• NEW AND IMPROVED WATER SYSTEM with gravity-fed water supply from the water tank and external water supply from a hose (hose connection fitting is included). There is no water pump or misting system on the new machines. Advantages of this product update include more water under the machine for optimal wet grinding, and simpler operation and maintenance.
• EFFORTLESS GRINDING AND POLISHING, AND EFFORTLESS TRANSPORTATION AND LOADING. Featuring a super light and easy-to-use remote control and intuitive touchscreen panel for essential operating information (indications of power supply and power consumption, machine load, hour meter, tool holder rpm and option to choose rpm setting with tool input, water supply and lights activation, maintenance reminders, etc.)
• Completely redesigned frame delivers superior maneuverability and easy tool changes.
• Dust-proof planetary drive with low-friction rubber seal protects internal components from dust and moisture, which reduces maintenance and increases service life.
• Easy-to-use integrated weights with 4 positions for adjusting the grinding pressure. With the weights down, you can grind more aggressively.
• Improved dust collection efficiency. Adjustable skirt with a flexible brush for better dust containment. Also, the vacuum hose connection is now closer to the dust source, and utilizes a metal camlock attachment.
• Added protection on 3 phase, 220V models to prevent machine damage if plugged into high voltage.
• Adjustable handle bar with multiple handle positions for more convenient operation and transportation. Make sure the handle position is locked when moving or using the machine.
• LED lights for monitoring the floor – two on the base in the front improves visibility, and another one in the back of the machine close to the floor helps monitor the scratch pattern.
• Convenient lift points for moving the machine with a forklift when needed.
• Charging phone station with dual USB 2.0 ports, 3.15 Amps for faster charging with a shutoff when charge is complete.
• Durable stainless steel cup holder.

SPECIFICATIONS

• Part Number: L3213REB
• Grinder Type: Remote-Controlled
• Working Width: 32-inch
• Horsepower: 20 HP
• Voltage: 3ph x 200-240V, 60 Amp max
• Weight: 1565 lbs
• Grinding Pressure: 540-870 lbs
• Heads: 3 x 9-inch
• Dimensions (LxWxH): 100x34x52 in
