Labsystems Wellwash AC

PRODUCT DESCRIPTION

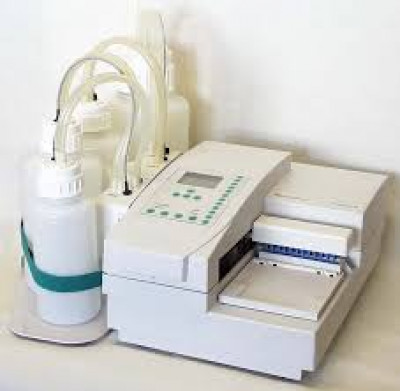

Labsystems Wellwash AC with Bottle Module
The Labsystems Wellwash AC effectively performs washes and leaves low residual volumes for 96-well microplates in research or high-throughput applications. It is a multibuffer microplate washer with its own separate liquid management module or 'bottle module' (included). The bottle module features unique quick-release bottle caps housing the liquid-level sensing system which also provides audiovisual warnings. The residual aspiration volumes after the washing cycle are less than 1 µl per well when using the advanced sweep aspiration, and the twin-strip wash head (24-way) rapidly traverses the stationary plate during washing. The Wellwash AC also has an integrated orbital shaker with programs to adjust the duration of shaking and speed. Its on-demand activation of automatic rinsing and priming modes minimizes the setup time, and the control panel provides user-friendly and flexible programming options.

• Orbital shaker: 2 mm orbit, 650-990 rpm
• Program memory: 99 (each program can include up to four linked wash protocols even with different wash buffers)
• Washing volume 50-1000 µl in 50 µl increments
• No. of washing cycles 1-10
• Residual aspiration volume: < 3 µl with normal aspiration mode < 1 µl with sweep aspiration mode
• Aspiration height: Adjustable
• Aspiration mode: Normal or sweep
• User interface: Keyboard with 20 key tactile membrane, 8 x 21 character LCD screen
• Interface Serial RS-232 port
• Dispensing volume 50-400 µl
• Dispensing accuracy: ± 5% at 300 µl
• Dispensing precision: CV 3% at 300 µl
• Soaking/shaking time 1-60 min
• Priming and rinsing volume: 5-100 ml in 5 ml increments
• Washing time: 100 s, 3 x 350 µl with 2 x 12-way wash head 140 s, 3 x 350 µl with 2 x 8-way wash head
• Liquid containers: Wash bottle 2 x 2 liter, Rinse bottle 1 liter, Waste bottle 4 liter
• Dimensions (Including bottle module): Width 540 mm (21.3 in.), Depth 530 mm (20.9 in.), Height 390 mm (15.4 in.)
• Weight 13 kg (28.8 lbs.)
• Model 870
• S/N: 870-132
