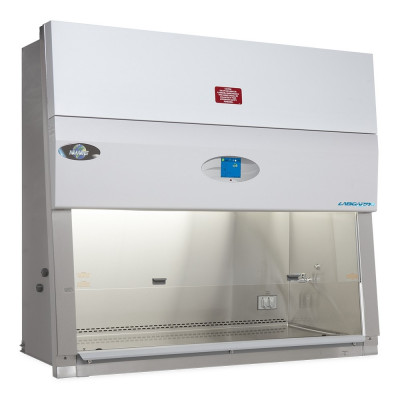

LabGard® ES AIR Limited NU-545E Class II Microbiological Safety Cabinet
The LabGard® ES (Energy Saver) AIR Limited model NU-545E Laminar Flow Biosafety Cabinet (LFBSC) is 230-volt NSF/ANSI49 and EN12469 listed bench/tabletop model, optionally available with a base support stand, for operation as a console model. The LabGard® ES Model NU-545E utilizes an Energy Saver DC ECM Motor optimally determined forward curved fan for each model size/width to maximize both energy efficiency and filter loading capacity. The Energy Saver ECM Motor is controlled to airflow set points via a solid-state DC motor controller with digital dual thermistor airflow sensors that provide an automatic compensation (constant volume control) for both filter loading and line voltage variances.
Technology
TouchLink Electronic Control System
The NU-545E TouchLink Control system is a color touchscreen providing the latest dual microprocessor design technology for improved cabinet performance and safety. TouchLink ECS offers the following functionality:
- Control blower DC ECM Motor via solid-state DC Motor Controller
- Monitor, display and control downflow, via digital dual thermistor airflow sensor
- Monitor and display exhaust flow (inflow) via digital dual thermistor airflow sensor
- Alarm setpoints, high/low for error conditions (downflow and exhaust flow)
- Password Protection
- Filter Status
- Decontamination Cycle
- Date/Clock display
- Timer Functions
- Laboratory Timer
- Purge Timer
- Outlet Timer
- UV Light Timer
- Autorun Timer
- Control lights via solid state switch
- Control outlets via solid state switch
- Complete diagnostic functions
IntelliFlow – Accurate Airflow
Using the same technology as your accredited biosafety cabinet certifier, model NU-545E features the use of two digital dual thermistor airflow sensors in the cabinet’s download and exhaust airflow to measure, monitor, and control downflow and inflow air velocities ensuring safe airflow performance.
Ergonomically Designed
More Useable Workspace
LabGard AIR Limited offers up to 20% more usable space compared to other biosafety cabinets on the market.
Shorter Reach Into the Work Zone
A shorter reach of 156 mm (6-inches) into the safe useable work zone brings your work closer to you promoting ergonomic sitting/standing position minimizing stress on your back, should, neck, and arms.
Lower Total Cost of Ownership
Ultra-High Efficiency Motor
A robust single DC ECM motor uses less electricity to operate while containing more torque to get the most life out of your filters.
High Efficiency LED Lighting
External LED lighting provides 10% more light, uses 50% less energy, and lasts 150% longer than fluorescent lighting.
Safety by Design
Monolithic Construction
NuAire 500 series Biosafety Cabinets are constructed as a single piece stainless steel shell. Large sheets of heavy-duty stainless steel are bent and welded into place to create a pressure tight cabinet shell eliminating the use of gaskets, sealants, rivets, and potential weak spots prone to leaks.
Dynamic Air Barrier
An air barrier of 0.53 meters per section (105 fpm) is created by a vacuum at the front of the cabinet accented by an aerodynamic armrest creating the strongest air barrier available protecting your technicians.
True Laminar Airflow
Unidirectional airflow of 0.30 meters per second (60 fpm) over the work zone minimize cross-contamination protecting your work.
Standard Features
- 254 mm (10-inch) Access Opening Safety Plate Sliding Glass
- H14 Metal Frame HEPEX Separatorless 99.995% @ 0.025 MPPS with Permanent Plenum
- H14 Metal Frame HEPEX Separatorless 99.995% @ 0.025 MPPS
- Spill Trough with Drain Vavlve
- Power Cord 230V
- Heavy Duty Ergonomic Plastic Armrest
- Quantity 2 Outlets (Backwall)
- Service Valve Right Bottom
- Service Coupling Left Middle
- Service Coupling Left Bottom
- Service Coupling Right Middle
