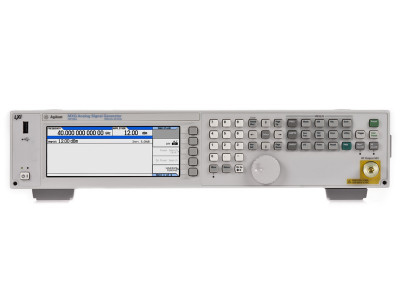

The Keysight (formerly Agilent) N5183A-540 MXG is 40 GHz economy class, continuous wave (CW) signal generator specifically designed to maximize uptime and reduce cost of ownership. The N5183A-540's less than or equal to 900-microsecond switching speed enables a dramatic increase in throughput. The N5183A-540's simple design delivers easy self-maintenance that reduces downtime to one working day, making it possible for users to maintain or repair the instrument in-house. Not only does this capability maximize uptime, it also drives a lower cost of ownership.
Signal Characteristics 100 kHz to 40 GHz
12 dBm at 40 GHz output power
=900 µs frequency switching speeds
-98 dBc/Hz typical phase noise at 20 kHz offset
Modulation: AM, FM, fM and Pulse modulation
Pulse modulation < 10 ns pulse rise/fall time and 20 ns pulse widths
Digital and step sweep
Communication Interface 100BaseT LAN, USB 2.0 and GPIB LXI class-C compliant, SCPI and IVI-COM drivers
Backward compatible with PSG Analog Signal Generator, and 8340, 8360 and 8370 Series signal generators
