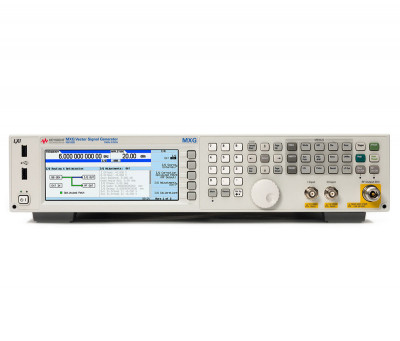

The Keysight (Agilent) N5182B-503 is a 3 GHz MXG Vector Signal Generator.
Here are some of the specifications of the N5182B-503:
Frequency: 9 kHz to 6 GHz
Output Power @1 GHz: -144 dBm to 26 dBm
Phase Noise @1 GHz (20 kHz offset): -146 dBc/Hz
Frequency Switching: = 800 ?s
Harmonics @1 GHz: <-35 dBc
IQ Modulation BW Internal/External: 160 MHz to 200 MHz
Non-Harmonics @1 GHz: -96 dBc
Sweep Mode: List, Step
Baseband Generator Mode: Waveform Playback and Real-Time
With the Keysight N5182B-503 you can:
Test radar receiver sensitivity, characterize ADC or mixer signal-to-noise ratio, or find receiver out-of-band rejection with unmatched phase noise and spurious performance
Drive power amplifiers and characterize nonlinear behavior with industry-leading ACPR and output power
Test wideband receivers and components, such as for 802.11ac WLAN, with the only one-box, factory-equalized 160 MHz RF bandwidth solution
