The Keysight (formerly Agilent) M9381A is a modular signal generator that provides Keysight (formerly Agilent) quality and performance in the PXI form factor. It accelerates throughput by delivering new levels of speed in signal generation -- fast RF tuning, baseband tuning technology innovation, versatile list mode, and more.

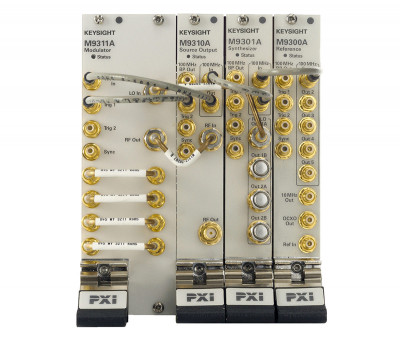

A typical M9381A configuration includes four individual PXIe modules - an M9311A digital vector modulator, M9310A source output, M9301A synthesizer, and the M9300A frequency reference - designed for fast data interfaces and high-speed automated test systems. Instrument control is provided through a soft front panel and programmatic interfaces tuned to the application and development environment of choice.
Specifications
Frequency coverage from 1 MHz to 6 GHz
10 us switching speed with an exclusive baseband tuning technology innovation
RF modulation bandwidth up to 160 MHz (+/- 0.3 dB flatness)
Better than +/- 0.4 dB absolute amplitude accuracy
