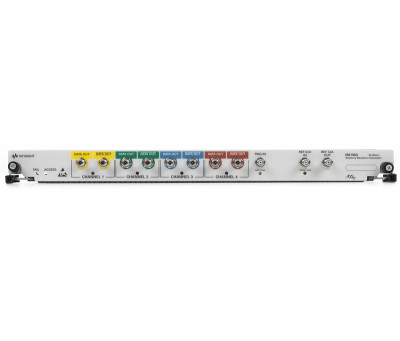

The Keysight (formerly Agilent) M8196A Arbitrary Waveform Generator (AWG) comes with a very high sample rate and a wide bandwidth with up to four synchronized channels operating simultaneously on one module.
The M8196A is well-suited to test different optical systems from discrete components like optical power amplifiers to more complex dual polarization systems like optical modulators or optical receivers.
With up to 4 channels per 1-slot AXIe module, each running at up to 92 G Samples/sec with 32 GHz of analog bandwidth, it allows dual polarization testing in a small form factor and the generation of complex signals with multiple modulation schemes (PAM-4,PAM-8, QPSK, nQAM) up to an outstanding speed of 64 GBaud and beyond.
It is also well-suited to address multi-level/multi-channel interfaces using any standard or custom data format, for example high-speed backplane connections using PAM-4 or PAM-8 format, as well as technologies in the mobile application space.
Specifications
Sample rate up to 92 GSa/s, 8-bit vertical resolution (on up to 4 channels simultaneously)
32 GHz analog bandwidth
Amplitude up to 1 Vpp(se) (2 Vpp(diff.), voltage window -1.0 to +2.5 V
Supporting signals up to 64 GBaud and beyond
512 kSa of waveform memory per channel
Transition times < 9 ps (20% to 80%), with frequency response compensation
1, 2, or 4 diff channels per 1-slot AXIe module
Ultra-low intrinsic jitter
Built-in frequency and phase response calibration for clean output signals
