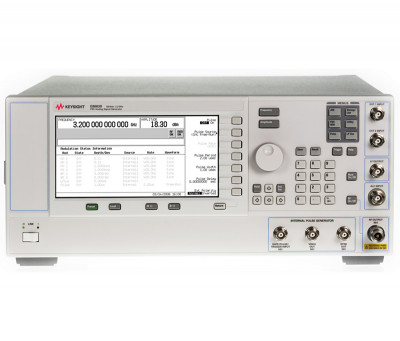

Keysight Technologies is a major manufacturer of electronic test and measurement equipment. The Keysight (formerly Agilent) E8663D-509 is a high frequency analog signal generator which comes with the following important features:
Lowest phase noise available in a commercially-available signal generator
Optional analog modulation (AM, FM, FM, and pulse) capability
Superior level accuracy
High output power
Metrology-grade performance ideal for demanding applications such as radar system development, satellite communications evaluation, or when a very low noise local oscillator or reference signal is needed
Built on the outstanding legacy of the 8663A, the E8663D-509 delivers improved performance and is fully code compatible with its predecessor for seamless upgrades to existing test systems.
Specifications
100 kHz to 3.2 or 9 GHz with .001 Hz resolution
-135 to +24 dBm typical output power with Option 1EU
SSB phase noise with Option UNY: -143 dBc/Hz (typ) for a 1 GHz signal at 10 kHz offset
AM, FM, ?M, and pulse (may be simultaneously enabled)
Typical 6 ns rise/fall times and 20 ns pulse width
Dual internal function generators: sine, square, triangular, ramp, and noise
