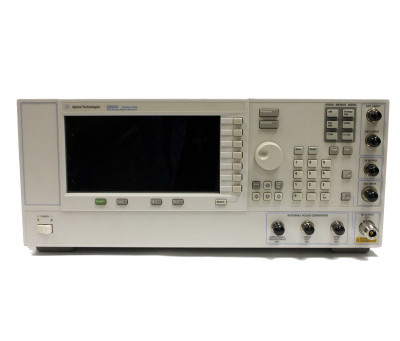

Keysight Technologies offers the high frequency E8663D-503 Analog Signal Generator. Keysight Technologies is well-known in the field of electronic test and measurement equipment, having originated from Agilent Technologies. The Keysight E8663D-503 comes with the following features:
Lowest phase noise available in a commercially-available signal generator
Optional analog modulation (AM, FM, PM, and pulse) capability
Superior level accuracy
High output power
Metrology-grade performance ideal for demanding applications such as radar system development, satellite communications evaluation, or when a very low noise local oscillator or reference signal is needed
Built on the outstanding legacy of the 8663A, the E8663D delivers improved performance and is fully code compatable with its predecessor for seamless upgrades to existing test systems.
Specifications
100 kHz to 3.2 or 9 GHz with .001 Hz resolution
-135 to +24 dBm typical output power with Option 1EU
SSB phase noise with Option UNY: -143 dBc/Hz (typ) for a 1 GHz signal at 10 kHz offset
AM, FM, ?M, and pulse (may be simultaneously enabled)
Typical 6 ns rise/fall times and 20 ns pulse width
Dual internal function generators: sine, square, triangular, ramp, and noise
