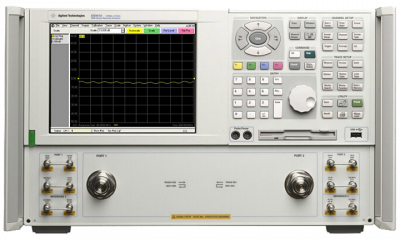

Keysight (formerly Agilent) E8362B

DESCRIPTION

The Keysight (formerly Agilent) E8362B vector network analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for high frequency, high-performance component test requirements. The PNA Series meets these testing challenges by providing fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity. The E8362B now provides the capability to more accurately measure mixers and converters with its new frequency-offset capability. Powerful automation and self-help tools make the instrument suited for both R&D and manufacturing.

Here are some highlights of the Keysight (formerly Agilent) E8362B:

• 123 dB dynamic range and <0.006 dB trace noise
• <26 usec/point measurement speed, 32 channels, 16,001 points
• TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements
• Mixer conversion loss, return loss, isolation, and absolute group delay
• Amplifier gain compression, harmonic, IMD, and pulsed-RF

Specifications

• 125 dB of Dynamic Range at 20 GHz
• <0.006 dB of Trace Noise at 1 kHz IFBW
• <26 usec/point Measurement Speed
• 32 Measurement Channels with up to 16,001 Points per Channel
• Supports TRM/LRM calibration for the most accurate on-wafer, in-fixture, and waveguide measurements
