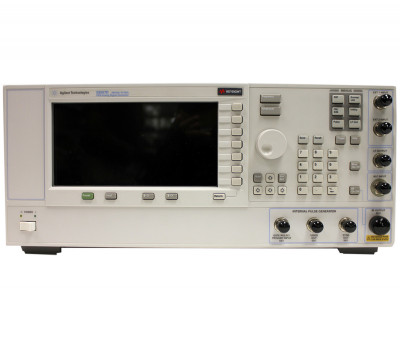

The E8257D 567 PSG analog signal generator delivers industry-leading output power, level accuracy, and phase noise performance up to 67 GHz (operational to 70 GHz). The E8257D PSG high output power and superior level accuracy often eliminates the need of an external amplifier for testing high power devices and minimizes test uncertainty to identify errors early in the design process. The world-class phase noise performance of the Keysight E8257D is ideal for local oscillator, low jitter clock substitution and adjacent channel selectivity tests. When testing advanced RF & microwave radar, communications, and control systems, the PSG delivers the performance you demand. Now available with option UNX: Ultra-low Phase Noise Performance.
Specifications
Broad frequency ranges - 250 kHz to 20, 40, 50 or 67 GHz (operational to 70 GHz) with .001 Hz resolution
High output power - typical performance of +23 dBm @ 20 GHz, + 17dBm @ 40 GHz, + 14 dBm @ 67 GHz
SSB phase noise - typical performance of -115 dBc/Hz at 10 kHz offset from 10 GHz carrier
Analog modulation formats - AM, FM, phase and pulse
Dual internal function generators - sine, square, triangular, ramp, and noise waveforms
Frequency extension - up to 110 GHz with 83550 Series mm-wave modules
Narrow pulse modulation - typical 8 ns rise/fall times and 20 ns pulse width from 10 MHz to 67 GHz
