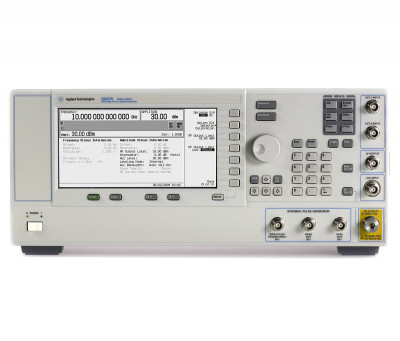

The Keysight (formerly Agilent) E8257D-550 PSG analog signal generator delivers industry-leading output power, level accuracy, and phase noise performance up to 67 GHz (operational to 70 GHz). The Keysight E8257D-550 PSG analog signal generator's high output power and superior level accuracy often eliminates the need of an external amplifier for testing high power devices and minimizes test uncertainty to identify errors early in the design process. The E8257D-550 has world-class phase noise performance (typically -116 dBc/Hz @ 10 GHz carrier and 10 kHz offset) is ideal for local oscillator, low jitter clock substitution and adjacent channel selectivity tests.
When testing advanced RF and microwave radar, communications, and control systems, the E8257D-550 PSG analog signal generator delivers the performance you demand.
Signal Characteristics 250 kHz to 20, 31.8, 40, 50 or 67 GHz, operational to 70 GHz (.001 Hz resolution)
Extendable to 75, 90, 110, 140, 170, 220, or 325 GHz - mm-wave modules 23 dBm @ 20 GHz, 17dBm @ 40 GHz, 14 dBm @ 67 GHz output power (typ) Industry's best SSB phase noise - Option UNX Modulation AM, FM, pulse, and scan 8 ns rise/fall times and 20 ns pulse width (typ)
Dual internal function generators: sine, square, triangular, ramp, and noise
Sweep Step, list, and ramp sweep (frequency and power)
Source control using PSA Series spectrum analyzer Keysight (formerly Agilent) 8757D scalar network analyzer code compatible
Automation and Communication Interface 10BaseT LAN and GPIB SCPI and IVI-COM drivers
Backwards compatible with all PSG signal generators.
