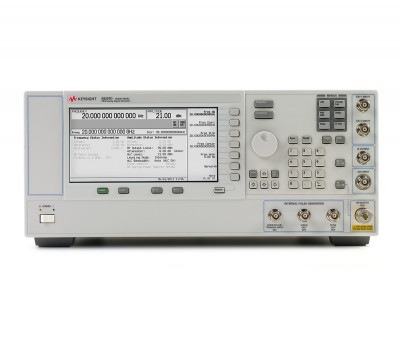

The Keysight E8257D-521 is an analog signal generator that offers a frequency range of 10 MHz to 20 GHz. The E8257D-521 can be used to test high-power devices and overcome test system losses. It can be applied towards Doppler radar, ADC, and receiver-blocking tests. Here are the Keysight, formerly Agilent E8257D-521's specifications.
E8257D-521 - Key Specifications:
- Output Power @1 GHz: -135 dBm to 21 dBm
- Phase Noise @1 GHz (20 kHz offset): -143 dBc/Hz
- Frequency Switching: < 7 ms
- Harmonics @1 GHz: -55 dBc
- IQ Modulation BW Internal/External: n/a
- Non-Harmonics @1 GHz: -80 dBc
Sweep Mode:
Ramp Baseband Generator Mode: n/a
Software-General Purpose:
Software-Cellular/Wireless Connectivity: n/a
Software-Audio/Video Broadcasting: n/a
Software-Detection/Positioning/Tracking/Navigation: n/a
Waveform Playback Memory: n/a
Frequency Modulation-Maximum Deviation @1 GHz: 2 MHz Frequency Modulation-Rate @100 kHz
Deviation: DC to 10 MHz Phase Modulation-Maximum Deviation in Normal Mode: 10 rad to 1280 rad
Phase Modulation-Maximum Deviation in High-BW Mode: 1 rad to 128 rad
Amplitude Modulation-Maximum Depth: 90%
Amplitude Modulation-Rate: 0 to 100 kHz
Applications Available: Yes
Analog: Yes
