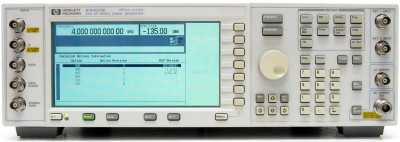

Keysight (Formerly Agilent) E4437B

DESCRIPTION

The Keysight (formerly Agilent) E4437B RF signal generator sets a new price-performance level by offering excellent spectral purity and digital modulation capabilities that are ideal for general-purpose research and development, manufacturing or troubleshooting applications. Providing a comprehensive feature set, it generates standard and custom digital modulation formats, filtering and burst shapes, as well as versatile analog modulation, with superior quality, reliability and worldwide support -- at an affordable price.

Specifications

• 250 kHz to 4 GHz frequency range
• RF modulation bandwidth up to 35 MHz
• Optional dual arbitrary waveform generator
• 40 MHz sample rate and 14-bit I/Q resolution
• 1 Msample (4 MB) memory for waveform playback and 1 Msample (4 MB) memory for waveform storage
• Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM), AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and power)
• GPIB and RS-232 connectivity 80
• Frequency Resolution 0.01 Hz
• Output Power -136 dBm - Output Power -136 dBm
• Output Accuracy 0.9 dB
• Output Impedance 50 Ohm
• Maximum Single-Side-Band Noise -104 dBc/Hz
• Harmonics (noise) -30 dBc
• Non-harmonics (noise) -53 dBc
• Modulation AM,Burst,FM,Phase,Pulse
