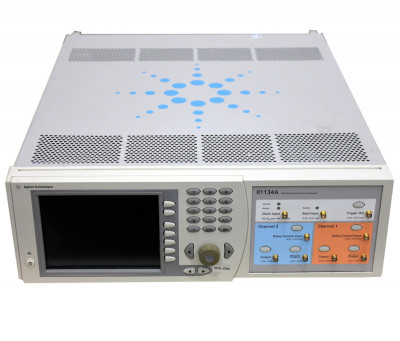

The Keysight (formerly Agilent) 81134A is an extremely capable dual-channel, 3.35 GHz, pulse pattern generator. When timing and performance is critical the 81134A's fast rise times and low jitter allow the precise characterization of devices and minimizes the influence of jitter injection by the source. With its 8 Kb memory and hardware PRBS generation complying to the most commonly used standards, the 81134A is an ideal data and pattern source particularly for eye diagram measurements.
Here are some key specifications of the Keysight (formerly Agilent) 81134A pulse pattern generator:
Two channels
Frequency range from 15 MHz to 3.35 GHz
Programmable pulse periods from 66.6 ns to 298.5 ps
Low jitter (< 2 ps RMS), high accuracy
LVDS applications can be addressed with output levels from 50 mV to 2.00 V
PRBS from 25 -1 to 231 -1
Fast rise times (20% - 80%) < 50 ps
Delay Modulation (jitter emulation)
Variable Cross-Over Point (eye deformation)
8 Kbit data pattern memory, RZ, NRZ, R1, Burst capability
