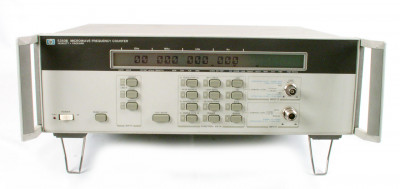

The Keysight (formerly Agilent) 5350B provides fast and precise measurements from 10 Hz to 20 GHz and features microwave components that are integrated on a single hybrid Gallium Arsenide (GaAs) circuit for added speed and reliability. The 5350B distinguished by wide frequency coverage, exceptional sensitivity, fast tracking, high measurement throughput, and wide FM tolerance. Built-in microprocessors provide math functions, including measurement scaling and offset. Automatic amplitude discrimination measures the frequency of the highest-amplitude signal in a multi-signal environment. A full set of diagnostic routines provides general information and troubleshooting.
Specifications
Frequency range from 10 Hz to 20 GHz; directly measures without expensive mixers
Sensitivity to -40 dBm ensures accurate measurement of low-energy signals
Low kickback noise for sensitive environments; sleep mode reduces noise to -70 dBm
Fast acquisition time (60 ms in automatic, fast acquisition tracking mode; 20 ms in manual mode) for improved throughput
Up to 120 measurements per second (100 in automatic mode) over HP-IB (fully programmable)
Fast tracking speed allows effortless tracking of source drift to 1 GHz per second; ideal for measuring the response of voltage-controlled oscillator to voltage-source tuning
