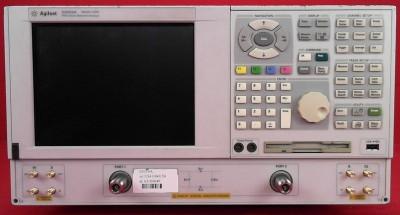

The Keysight (formerly Agilent) E8356A 330kHz to 3GHz vector network analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today's component test requirements. The PNA Series meets this testing challenge by providing the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity. The E8356A provides TRL/LRM calibration (four-receiver enabled) for in-fixture and on-wafer devices, standard bias-tees for active devices and standard direct receiver access for extended dynamic range. Powerful automation and self-help tools make the instrument well suited for both R&D and manufacturing.
Specifications
143 dB dynamic range with direct receiver access
<0.002 dB of trace noise at 1 kHz IFBW
32 measurement channels with up to 16,001 points per channel
Supports TRM/LRM calibration for the most accurate on-wafer, in-fixture, and waveguide measurements
Source attenuators, bias-tees and direct receiver access standard
