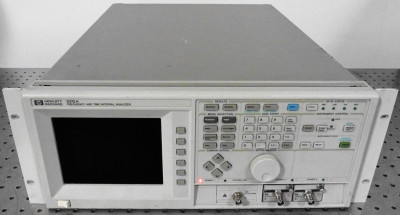

he Keysight (formerly Agilent) 5372A modulation domain pulse analyzer provides built-in functions for pulsed signal analysis and is ideal for applications requiring radar and EW signal characterization. It minimizes design and testing efforts required for modern military, air traffic, marine, weather, and space-based radar systems. The measurements of phase, frequency, and time are optimized for complex signal modulations. The 5372A simplifies the study of agile carriers, staggered PRI, chirp, phase coding, and similar modulations whether intentional or unintentional. The 5372A analyzer is particularly suited to working with pulsed and non- repetitive signals. It measures modulation and carrier frequency on pulsed RF signals to 500 MHz, and includes a detector channel for precise measurement of envelope parameters such as pulse width and PRI, peak envelope power, percent AM, jitter, and more. 200 ps single-shot, Least Significant Digit (LSD), 10 digits/second for frequency measurements (2 ps LSD for averaged measurements) Broad selection of measurements, arming and triggering configurations Built-in analysis, including math, statistics, limit testing, and calculated Allan Variance Graphic display and histograms for added visual meaning from collected data Up to 13 million measurements per second, 500 MHz frequency range (expandable to 2 GHz with optional channel).
Product Specifications Measurements (see also 5372A Frequency Measurements)
- Frequency PRF: Ch A and B: 125 mHz [8 kHz with fast meas. mode] to 500 MHz Ch C: 100 MHz to 2 GHz
- Period/PRI: Ch A and B: 2 nsec to 8 sec [131 usec with fast meas. mode] Ch C: 0.5 nsec to 10 nsec
- Pulse Width/Off Time: Ch A: 10 nsec to 8.0 sec
- Duty Cycle: Ch A: 0% to 100% (provided pulse width is >1 nsec, and the signal period is: <1 msec (auto trigger) <2 sec [32.5 usec with fast meas. mode] (manual trigger)
- Rise/Fall Time: Ch A: 1 nsec to 100 usec transitions (auto trigger)
- Input Characteristics (Channel A) The following refers to an HP 5373A with an HP 53702A envelope pod installed. All measurements are referenced to an input of 0 dBm at 275 MHz.
- Frequency Range: 30 MHz to 500 MHz
- Flatness: +/- 1.0 dB (40 MHz to 500 MHz)
- AM Range: 20% to 85% AM Accuracy: 2.0%
- AM Frequency Range: 1 kHz to 9 MHz (typ)
- Minimum Pulse Width/Off Time: <=100 nsec
- Channel B Characteristics The following refers to an HP 5373A with an HP 54002A pod installed.
- Range: dc coupled to 500 MHz S
- ensitivity: -23.5 dBm (X 1 atten., minimum hysteresis) -27.0 dBm (typical) Hysteresis control is available to reduce input sensitivity to trigger noise.
- Dynamic Range: X1: -23.5 dBm to +10 dBm X2.5: -14.8 dBm to +18 dBm
