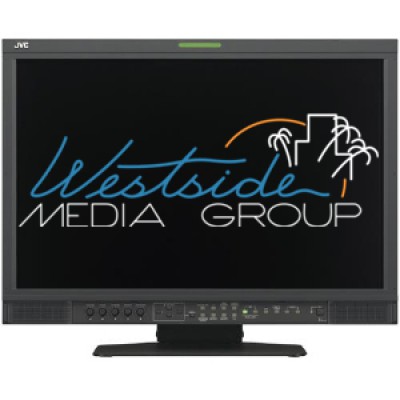

JVC DT-V24G1Z Monitor

PRODUCT DESCRIPTION

The JVC DT-V24G1Z is a great fit for television studios, remote production vans, production and post facilities, and other demanding professional applications.
JVC’s industry’s leading Series professional monitors are widely used throughout broadcast network facilities because of their unsurpassed image reproduction and rock solid reliability. The new JVC DT-V24G1Z goes beyond its predecessors in features and performance, setting new standards in terms of overall picture quality and accuracy. This new JVC DT-V24G1Z monitor has a full 1080p image display that offers much wider color gamut and wider viewing angles than previous models. The waveform monitor is now much larger and a vectorscope has been added. A 3G/Dual-link HD-SDI input enables monitoring of 1080/60p signals. Digital closed captioning is now standard. Superior scaling and de-interlacing, 10-bit 4:4:4 1080p processing combined with traditional rotary image controls, area markers, blue check and timecode display make the JVC DT-V24G1Z the best choice monitor for television studios, remote production vans, production and post facilities, and other demanding professional applications.

• 3G / Dual-Link ready for monitoring of 60 frames/3GB per second uncompressed 1080p digital video input signals: SMPTE 424M/425M/372M.
• Native 1920 x 1200 IPS (In-plane Panel Switching) LCD Panel offers wide viewing angle of 178°/178° with minimal color change from different viewing angles. Panel provides 1:1 monitoring of 1920 x 1080 signals while providing metering and status above or below the active picture area.

• Ultra High Resolution Waveform Monitor with adjustable over-level indicator function.
• High quality Vectorscope allows checking of color hue and saturation.
• Digital Closed Captioning Decoder built in.
• 10-Bit 4:4:4 Video Processing for superior image gradation, advanced directional interpolation in eliminating edge artifacts, and pixel-based motion adaptive de-interlacing.
• Ultra-Low Latency Circuitry (< 1 frame) for lip-sync accuracy.
• Twelve Channel Embedded Audio Metering Display with Peak Hold viewable above or below active picture area.
• HD/SD SDI Embedded Time Code On-Screen Display
• Ergonomic Front-Panel Precision Rotary Controls.
• 1080/24psf Signal Capability
• Full Screen Mode for SD 4:3 signals
• Versatile connectivity
  • HD/SD SDI (x2 In, x1 Switched Out), Component/RGB and Composite Video Input and Output
  • DVI-D (HDCP Video and PC) Input
  • Audio inputs with built-in speakers
  • ASCII Code Input for Source ID
  • RS-232C, RS-485 (RJ-45 In and Out) and Make/Trigger (RJ-45 In) External Control Connections
• Computer Automated Calibration Capability of Black Level, White Level, Color Temperature and Gamma for mission-critical monitor matching. FREE calibration software download: http://pro.jvc.com/calibrate/
