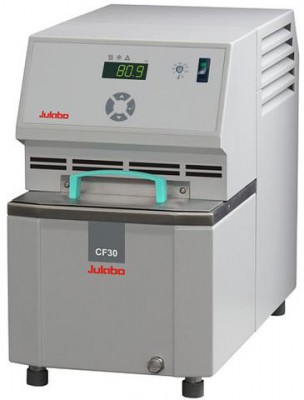

Julabo CF Series of Cryo-Compact Circulators 3.5 Liter Stirred / Circulating Baths HighTech
Julabo CF Series of Cryo-Compact Circulators 3.5 Liter Stirred / Circulating Baths HighTech
Product Specifications
BRAND
Julabo
MODEL
CF30
DESCRIPTION
The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and safety class 3 according to DIN12876-1. The maximum ambient temperature of +40°C as well as ventilation air cooling allow installing the units very closely side by side with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments provide reliable Microprocessor electronics with high temperature stability as well as warning and safety functions. Features:
Ergonomic design and easy operation
Small overall dimensions for lowest space requirement
Splash-proof keypad
RS232 interface for PC connection
Adjustable high temperature cut-off
Classification 3 according to DIN12876-1
Pump connections for external temperature applications
Bath opening for temperature control of small objects in the bath
Front drain
High-tech model offers additional features that allow more precise control than economy models:
Bright VFD display and additional interactive LCD dialog display of 3 values,warning functions, high
temperature cut-off, pump stages (resolution 0.01 °C)
Highly precise 'Intelligent Cascade Control', automatic and self optimizing adjustment of PID control parameters
TCF Temperature Control Features for individual optimization, additional settings for band limit, limits etc
Absolute temperature Calibration for manual compensation of a temperature difference, 3-point calibration
Electronically adjustable pump stages for reliable and consistent pump capacity
Integrated programmer for the execution of time and temperature dependent profiles, 6 temp profiles with 60 steps max., with real time clock
External Pt100 sensor connection for precise measurement
Early warning system for low liquid level for maximum safety and for high/low temperature limits
