JLG 20MVL Driveable Vertical Mast LIft | Rent, Finance, or Buy

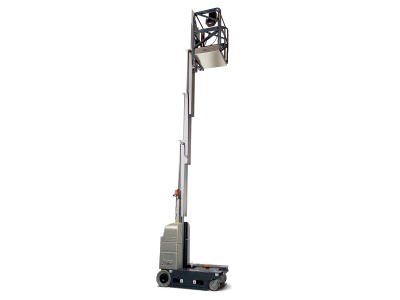

JLG 20MVL Driveable Vertical Mast LIft

JLG 20MVL Driveable Vertical Mast LIft
Specifications
PRODUCT DESCRIPTION
20MVL
Driveable Vertical Mast Lift

Key Features
  • Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
  • Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
  • Rigid mast for operator comfort and stability
Speifications
  • Dimensional Data
    • Wheel Size - Front Caster8 x 2.5"
    • Ground Clearance2 in. / 0.05 m
    • Ground Entry Height1 ft 6 in. / 0.46 m
    • Machine Height6 ft 6 in. / 1.98 m
    • Machine Length4 ft 6 in. / 1.36 m
    • Machine Width2 ft 6 in. / 0.75 m
    • Platform Dimension A2 ft 2 in. / 0.66 m
    • Platform Dimension B2 ft 4 in. / 0.71 m
    • Wheel Size - Rear12.62 x 4"
  • Reach Specifications
    • Platform Height19 ft 1 in. / 5.82 m
    • Working Height25 ft 1 in. / 7.65 m
  • Performance
    • Drive Speed - Platform Elevated0.6 mph / 0.97 km/h
    • Drive Speed - Platform Lowered3.5 mph / 5.63 km/h
    • Drive System4 Brush Direct Electric
    • Gradeability20 %
    • Maximum Drive Height19 ft 6 in. / 5.94 m
    • Maximum Lift Height19.5 ft / 5.94 m
    • Platform Capacity350 lb / 158.76 kg
  • General
    • Machine Weight2325 lb / 1054.60 kg
  • Power Source
    • BatteriesTwo Sealed-100 AH 12 Volt
