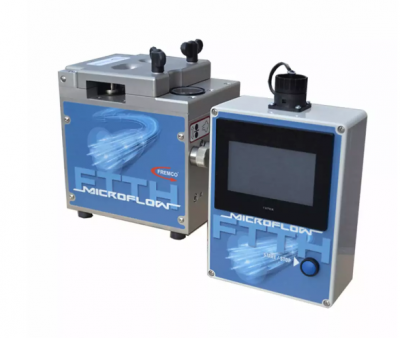

The MicroFlow TOUCH incorporates a unique fiber protection technology that automatically stops the machine and prevents costly damage to fiber optic cable during installation. As the cable encounters an obstruction, it bends slightly in the machine, triggering an integral stop sensor. Exceeding the preset motor torque limit also interrupts the installation process. In either case, the machine automatically protects fiber from possible damage. After the fiber protection technology is triggered, the MicroFlow will attempt installation two more times before completely disengaging the machine.
ADDITIONAL INFORMATION
Features:
Easily adjust maximum motor torque and speed
Preset specific fiber blowing distance
Control Acceleration (start to maximum speed) and Deceleration (maximum speed to stop)
Displays critical information during blowing process: Actual Motor Torque, Actual Motor Speed and Distance Counter
Specifications:
Application: FTTx / Inside Plant
Fiber/Cable (OD): 0.8-6.5 mm
Duct Diameter (OD): 4.0-16.0 mm
Drive Power: 120/230 VAC
Install Speed (Max.): 295 ft./min. (00 m/min.)
Blowing Distance (Max.): 8,200 ft. (2500 m)
Rec. Air Flow: 7.1-17.7 cfm (200-500 l/min.)
Rec. Air Pressure: 120-230 psi ( 8-16 bar)
Dimensions (L x W x H): Machine: 9.9 x 5.9 x 8.5 in. (250 x 150 x 220 mm) / Control Unit: 7.8 x 5.9 x 3.2 in. (200 x 150 x 80 mm)
Weight: Machine: 25.8 lbs. (11.7 kg) / Control Unit: 4.2 lb (1.9 kg)
