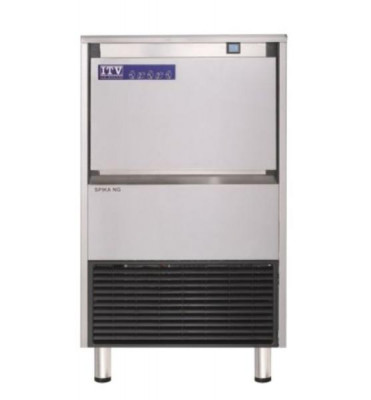

ITV SPIKA NG125-W1H Undercounter Ice Maker

DESCRIPTION

STANDARD FEATURES

New water distributor:
Increases resistance against scale build up
Easily removable and cleanable
Inlet water connection through evaporator:
Helps to harvest
Precools water
Assists energy recovery
Seal-less pump outside ice zone
Electrochemical control:
The machine works with electromechanical timer and thermostat
Simple, easy to comprehend and service
High reliability and low maintenance expense
Dual switch:
External switch allows to turm the machine on/off easily
Removing the top cover, we have the ice/wash switch on one side of the electrical box
Strong inox frame, 304 stainless steel construction:
Box-type farme with steainless steel support, makes the machine stronger and allows serviceing operation without disassembling the entire machine
Easy access for service and installation:
Designed to have better access to all components making installation and servicing operations easier.
One person can disassemble the entire machine with a basic screwdriver
Front ventilation:
Condensing unit permits 100% front ventilation
Air inflow and outflow through the front grill, thus permitting embedded installation
Insulated storage bin:
Storage bin with polyurethane foam insulation gives higher ridgity with lower heat transmission
Isolated, but not refrigerated bins
Operating limits:
Tropicalized machines ( Class T )
Suitable for low temperature environments of 41F
Air and water and high temperature environments 109F (Air), 95F (Water)
Water pressure: Min. 10 psi (0.7 bar.)/ Max. 85 psi (6.0 bar.) NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi (6.0 bar.)
Electrical specifications:
115V/60Hz./1-Fuse size 15 - NEMA plug type 5-15P
Also avalible 208-230V/50Hz. (Special order only. Restrictions may apply. Contact dealer for details)
More energy efficiant:
SPIKA Series are Energy Star® qualified machines, reducing water and electricty consumption
SPECIFICATIONS

Cond Unit: Water
Cube Style: HALF
Daily production Lbs./Kg70F-50F: 143/65
Daily production Lbs./Kg 90F-70F: 107/49
Cube cycle: 150
Storage Lbs./Kg: 44/20
Water Usage gal./hr. - l./hr.: 1.60-5.90
Voltage: 115V/60Hz./1
Kwh/100lbs.- Amps: 7.92-6.0
Net weight Lbs./Kg.: 115/52
Dimensions (inch): W: 21-1/8 x D: 23-3/8 x H: 31-1/4

Dimensions do not include adjustible legs from 6" to 6.5"
