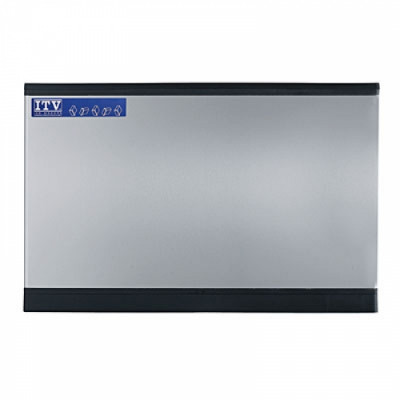

ITV SPIKA MS 500 A2H Ice Machine

DESCRIPTION

STANDARD FEATURES

New water distributor:
Increases resistance against scale build up
Easily removable and cleanable
30" Wide:
Standard width for modular ice makers; fits any 30" wide ice storage bin or dispenser
Larger daily ice production:
From 494 Lbs./224 Kg. to 970 Lbs./440Kg. a day
Dual switch:
A rear switch allows to turn the machine on/off easily.
Removing the front cover we have the ice/wash switch
Easy cleaning:
Smart plastic design for food zone
Inlet water connection through evaporator:
Helps to harvest
Precools water
Assists energy recovery
Easy access for service and installation:
Designed to have better access to all components making installation and servicing operations easier.
One person can disassemble the entire machine with a basic screwdriver
Operating limits:
Tropicalized machines ( Class T )
Suitable for low temperature environments of 41F
Air and water and high temperature environments 109F (Air), 95F (Water)
Water pressure: Min. 10 psi (0.7 bar.)/ Max. 85 psi (6.0 bar.) NOTE: Install a pressure reducer if water inlet pressure is more than 85 psi (6.0 bar.)
Electrical specifications:
MS440: 115V/60Hz./1. Also avalible 208-230V/60Hz/1. Plug 5-15P
MS880: 208-230V/60Hz./1. Also avalible three phase. PLug 6-15P.
More energy efficiant:
SPIKA Series are Energy Star® qualified machines, reducing water and electricty consumption
SPECIFICATIONS

Cond Unit: Air
Cube Style: HALF
Daily production Lbs./Kg70F-50F: 494/224
Daily production Lbs./Kg 90F-70F: 410/186
Cube cycle: 400
Water Usage gal./hr. - l./hr.: 2.80-10.70
Voltage: 208-230V/60Hz./1
Kwh/100lbs.- Amps: 6.70-9.0
Net weight Lbs./Kg.: 143/65
Dimensions (inch): W: 30 x D: 24-3/8 x H: 19-3/4
