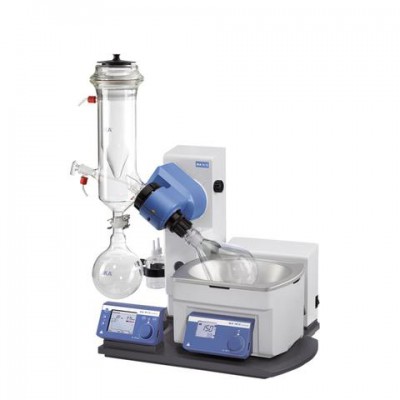

​IKA RV 10 Control with Dry Ice Condenser Rotary Evaporator, Coated

DESCRIPTION

The RV 10 control with Dry Ice Condenser, coated includes an RV 10.4 Dry Ice Condenser coated for shatter protection.

The RV 10 control the flagship of the IKA Rotary Evaporator line. Its comes with convincing features like color graphic display operation, integrated vacuum controller, cooling water management and sophisticated safety features. The RV 10 control is designed for safe, efficient and economical operation. The automated management of vacuum levels as well as cooling water makes for an optimal distilling experience. Operating the unit through the color graphic display quickly leads the user to where they want to be. The condenser unit has special designed glass tubes that utilize the 1500 cm² surface extremely efficient. The RV 10 control allows the user to program up to 10 individual procedures. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 control are the sophisticated safety features. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features. Furthermore, IKA offers a choice of coated glassware for increased safety needs. The RS 232 interface allows for remote control via IKAs “labworldsoft”. The Heating bath is controlled via the IR interface from the main unit.

Features:

• Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
• Safe and simple operation through ergonomically shaped operator unit in the front area
• Motorized lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
• Adjustable end position recognition to protect the glass from breaking
• Speed range from 20 to 270 rpm
• Smooth start from 100 rpm
• Digital speed display
• Moves right and left in interval operation for the drying process
• Timer function for time lapse controls
• Water-oil heating bath with integrated carry handles with safe handling
• Heats up quickly because of optimized bath volumes
• Cooling surface 1,200 cm²
• Push-off mechanism to loosen tightly fitting pistons
• Digital water - oil heating bath with integrated carry handles
• Temperature control of the heating bath by a micro controller
• Digital temperature display
• Infrared interface for data transfer from the heating bath to the drive unit
• RS 232 interface for PC remote operation with labworldsoft
• Automatic operation with labworldsoft
• Integrated vacuum controller with central display for ramp programming
• Integrated solvent library, extendible by the client
• Distillation specific parameters stored for standard distillation
• Automatic transfer of measurements and distillation type with one key press
• Volume controlled distillation processes programmable
• Automatic boiling point recognition
• Color graphic display for safe and comfortable device operation
• Display of distillation curves
• Multiple languages
• Automatic ventilation after the end of the test
• Cooling water switched off automatically after the end of the test
• Integrated cooling water monitoring
• Heating bath safety management: automatic heating bath monitoring with distillation stop in case of temperature errors
• Heating bath switched off automatically after the end of the test
• USB interface
• Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)
