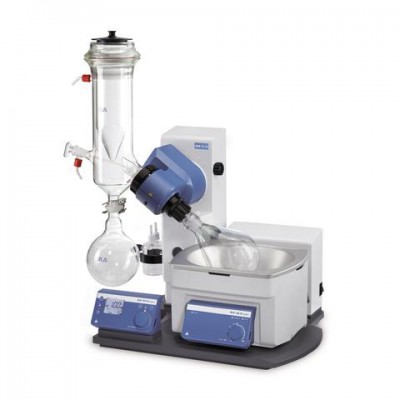

IKA RV 10 Basic V Rotary Evaporator Dry Ice (Coated)

DESCRIPTION

The RV 10 basic is the entry level model into the IKA RV 10 Rotary Evaporator line. It comes equipped with a new universal heating bath, space-saving vertical glassware as well as state-of-the-art safety features. The RV 10 basic is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has specially designed glass tubes that utilize the 1500 cm² surface extremely efficient. That’s why the RV 10 basic delivers reliable and reproducible process results usually seen on much more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 basic are the sophisticated safety features. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features. Furthermore, IKA offers a choice of coated glassware for increased safety needs.

RV 10 Basic with a Dry Ice Condenser Rotary Evaporators Feature:

• Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
• Safe and simple operation through ergonomically shaped operator unit in the front area
• Motorized lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
• Adjustable end position recognition to protect the glass from breaking
• Speed range from 20 to 270 rpm
• Smooth start from 100 rpm
• Digital speed display
• Moves right and left in interval operation for the drying process
• Timer function for time lapse controls
• Water-oil heating bath with integrated carry handles with safe handling
• Heats up quickly because of optimized bath volumes
• Cooling surface 1,200 cm²
• Push-off mechanism to loosen tightly fitting pistons
• Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)
