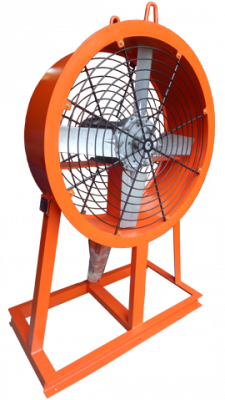

HOPELMAR HBB54

PRODUCT DESCRIPTION

The HOPELMAR bug blowers are rugged fans designed for maximum air flow, low decibel noise levels, durability and safety with more advantage such :

• Standard motor is dual rated for 380/440 VAC and 50/60 Hz. Other motors are available for your custom application.
• A lifting lug is included at the top of the housing to facilitate handling. Forklift pockets can be added to the heavy duty skid base for another option of easy handling.
• Safe operation and efficient performance.
• Ensure safe operation in any environtment.
• Makes handling safe and easy.

Specs

• Type: Direct Drive
• Impeller Size: 54"
• Electric Motor (Ex): 5 HP
• Speed (Rpm): 980
• Air Flow Capacity (Cfm): 39100
• Voltage (V): 380/440
• Cycle (Hz): 50
• Phase: 3
• Overall Height (mm): 1982
• Overall Width (mm): 1500
• Overall Depth (mm): 775
• Approximate Weight (kg)250

Features

• ​Material Impeller: Aluminium
• Material Hub: Aluminium
• Material Housing: Mild Steel
• Tech Specification: Nishishiba, Japan
• Adjustable
• Motor Starter on/off
• Cable Giant
• Electro Motor Standing
• Balancing Impeller
• Inlet / Outlet Grill
• Standing
• Lifting Eye on Frame
• Heavy-gauge front and back
