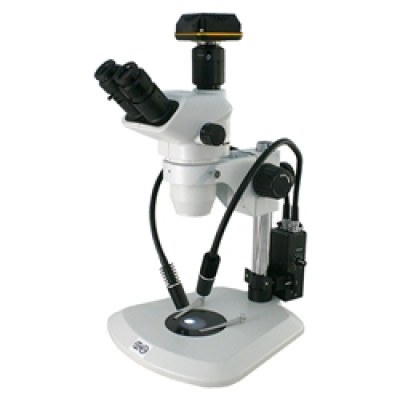

The FZ6 high resolution stereo zoom microscope on an ergonomic post stand with LED dual pipe lights includes your choice of digital camera and software.
Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.5x c-mount adapter.
Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye. Eyepieces accept a 24mm diameter reticle.
Objective Lenses: Zoom range of 0.67x - 4.5x.
Zoom Ratio: 6.7:1
Total Magnification: 6.7x - 45x. Magnification can be increased or decreased with auxiliary lenses. See magnification chart at bottom of page for details. Note that when changing eyepieces the magnification of the camera will not be altered.
Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
Field of View: 32.8mm at 6.7x and 4.9mm at 45x.
Stand: Ergonomic low-profile post stand with stage clips and 100mm black/white stage plate. Top of post on stand is 12" high.
Specimen Stage: Includes 100mm black and white stage plate and two stage clips.
Focusing: Coarse focusing holder.
Illumination: LED dual pipe illuminator clamps onto post stand. 110~240V power supply. Variable intensity control. Each self-supporting dual pipe is 24" in length and contains 3w LED.
Camera: Select from five options on the table below for the camera:
Camera Megapixels Pixel Size Frames Per Second Sensor Software
DCM3 3.2 3.2µm x 3.2µm 45fps @ 680x510
32fps @ 1048x769
11fps @ 2048x1536 1/2" CMOS Image Capture & Measurement
(PC Only)
DCM5
5 2.2µm x 2.2µm 60fps @ 640x480
18fps @ 1280x960
5fps @ 2592x1944 1/2.5" CMOS Image Capture & Measurement
(PC Only)
Subra Full HD
2.2 5.5µm x 5.5µm
30fps @ Full HD
1920x1080 2/3" CMOS Back Illuminated GRYPHAX Image Capture & Measurement
(PC & MAC)
Arktur 8 2.4µm x 2.4µm
50fps @ Full HD 1920x1080
30fps @ 3840x2160 2/3" CMOS Back Illuminated GRYPHAX Image Capture & Measurement
(PC & MAC)
Naos 20 2.4µm x 2.4µm
50fps @ 1800x1200
30fps @ 2700x1800 1" CMOS Back Illuminated GRYPHAX Image Capture & Measurement
(PC & MAC)
Microscope Size: 11.75" W x 12" D x 18" H
Warranty: 5 Years. 1 Year warranty on camera and LED pipe light.
