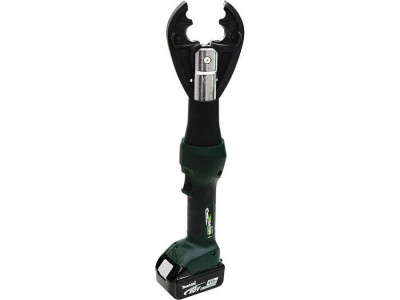

EK425LXDO11 6 TON BATTERY POWERED CRIMPING TOOL
Greenlee EK425LXDO11 includes battery powered crimper, CJD3O crimping jaws, quantity 2 new style 18 volt 4.0 amp hour lithium-ion batteries, 120 volt battery charger, and tool storage bag. This is the newest version of the Greenlee EK425 that was released in late 2016.
Intelli-CRIMP technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. In line tool style is light weight and very easy to control. The crimping head rotates 350 degrees. LED work light illuminates dark work areas.
THE FUTURE OF BATTERY POWERED HYDRAULIC TOOLS IS ABOUT TO BEGIN
For the last 20 years, Gator battery powered hydraulic tools have provided state of the art technology to assist the electrical market. With industry leading technology, ergonomic and easy to use designs, Gator tools help you work smarter on the job site. Cut cable, crimp lugs, and splices all in lightning fast time. With smart features such as Intelli-CRIMP and Auto Retraction Stop (ARS), you can always be sure that the job is done right.
WORK FASTER
- Automatic Retraction Stop (ARS) allows for up to 41% time savings
- High capacity Makita battery lasts longer than ever before
- Active battery monitoring system shows the amount of power that is left
WORK SAFER
- Ergonomic design and optimized center of gravity reduce fatigue and improve performance
- Set up maintenance alerts and generate reports to make sure your tool is always in peak condition
WORK EASIER
- Personalize and monitor your tool using the new Gator Eye App
- Get real-time communication of critical information related to tool operation via LED display
- Take advantage of proven time saving technology such as Intelli-CRIMP providing max efficiency
ERGONOMICS
- Maneuverability and reduced weight provide improved working postures
- In line trigger strengthens grip biomechanics
SPECIFICATIONS
- Crimping Force: 6 tons (54 kN)
- Length: 18.5 inch (470 mm)
- Length: 14.75 inch (375mm) without head or battery
- Width: 4 inch (108 mm)
- Weight: 6.6 lb (3 kg)
- Battery: 18V 4.0Ah Li-ion
- Cycle Time: ~4 seconds
- Charge Time: 40 minutes
- Charger: 120 volts
- Handle Type: In line style with over molded rubber grip
CONNECTOR CAPACITY
- 5/8″ Service Entrance Connectors: 10-1/0 AWG
- .840 Service Entrance Connectors: 1/0-4/0 AWG
- Aluminum “H” Taps: 6-4/0 AWG
- Copper “H” Taps: 10-2 AWG
- Copper Tension Splices: 6-2/0 AWG
- Aluminum Tension Splices: 6-4/0 AWG
- One Piece ACSR Tension Splices: 4-1/0 AWG
- Two Piece ACSR Tension Splices: 2 AWG-477 kcmil
- Aluminum Jumper Splices: 4 AWG-266.8 kcmil
- Stirrups: 2-4/0 AWG
- Aluminum color-coded lugs and splices: 8-4/0 AWG
