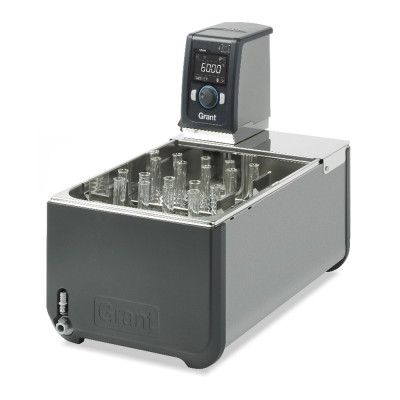

The Grant TXF200 series of digital heating circulating baths for sophisticated applications requiring complex programming and/or ultra precise temperature control in the range of -15°C to 200°C. The TXF200 heating circulator can be used in combination with any Grant stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical sided tank.
Cooling/heating range -15°C to 200°C
Stability ±0.01ºC / Uniformity ±0.05ºC
Powerful integral pump for external fluid circulation
Large, bright full colour display with a choice of 5 languages
5 point user calibration
Low-liquid detection (float switch)
Memory capacity for 10 programs with 100 segments
TXF200
Dimensions (h x d x w)342 x 172 x 141mm
Stability (DIN 12876) @70ºC0.01±ºC
Uniformity (DIN 12876) @70ºC0.05±ºC
Setting resolution0.1ºC (0.01 with Labwise®)
DisplayFull colour QVGA TFT
Timer function1 minutes to 99 hours 59 minutes
No. of temperature presets3
Re-calibration points5
Socket for external probe (TXPEP, TXSEP)
Communications interfaceUSB, RS232
ProgrammableDirect via user interface or remote via PC/ laptop 10 programs/ 100 segments
Relays1
Safety - over temperatureAdjustable cut-out
Fluid level - float
Language optionsEN, FR, DE, IT, ES
Alarms (can be configured to switch a relay)High and lowHigh and low
Heater power - 230V1840W
Heater power - 120V1445W
Electrical power - 230V2000 (50-60Hz)
Electrical power - 120V1500 (50-60Hz)
Height above tank rim200mm
Depth below tank rim145mm
Maximum pressure (water)530mbar
Maximum flow (water)22L/min (adjustable flow rate)
