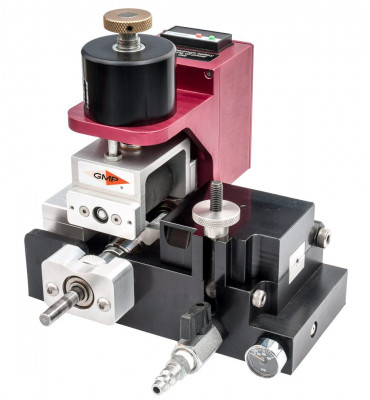

Now you can depend on the same GMP quality as our larger machines in a new smaller package… The Gentle Air uses compressed air to install the fiber. Coupled with the driven roller is a precision clutch which you can dial in your custom torque from zero to infinity. The rollers, powered by most types of cordless drills (not included), control the blown fiber as it is propelled into the microduct. An electronic monitoring system provides read-outs of speed and distance.
ADDITIONAL INFORMATION
The design of the Gentle Air provides for quick and easy component changes for different cable or duct sizes . Its compact size and portable maneuverability make the Gentle Air ideally suited for external or in-building use.
The Gentle Air uses compressed air to install the cable. The rollers, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct.
We suggest using a variable speed drill with an adjustable torque setting powered by an 18-20 volt battery. We further suggest a brush-less type drill manufactured by an industrial grade manufacturer.
Main Features:
Installs cable diameters of 0.039″ to 0.118″ (1.0 to 3.0mm)
Accommodates microduct sizes of 4 to 7mm (OD)
Uses a fully adjustable precision clutch for torque control
Uses most variable speed drills as a power source
Lightweight, durable construction with precision machined parts
Single person operation
Digital cable speed and length monitoring
Integral air valve and pressure gauge
Low maintenance
Ideal for smaller jobs where a bigger machine is simply too much
Travel bag included
Keywords related to this product include Drill Driven Blower, Drill Driven Cable Blower, Drill Driven Fiber Cable Blower, Blown Fiber Blower and Drill Powered Fiber Cable Blower
Specifications Cable Diameter: 0.039″ to 0.118″ (1.0 to 3.0mm) Tube Size (Outside Dia): (OD) 0.158″ to 0.275″ (4 to 7mm) Cable Speed (Adjustable): 0-300 ft/min (0-90m/min) Max Air Pressure: 220 psi (15 Bar) Power Requirement: Variable Speed Drill Width: 8.1 in. (206mm) Length: 9.7 in. (246mm) Height: 8.5 in. (216mm) Weight: Approx. (5.4Kgs Approx.)
