DESCRIPTION
CABLE PUSHER

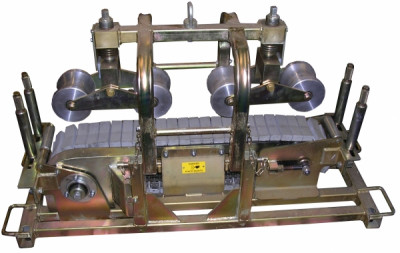

The GMP Cable Pusher has been designed to assist the laying of electrical cables.
The unit has a profiled drive system to grip the cable, with a load applicator of adjustable upper rollers. The unit is hydraulically driven and is powered by a Portable Hydraulic Power Pack.

Specification
  • Cable Size: 1.25 -6 in. (30-150mm) O.D.
  • Dimensions: 55 in. W x 20 in. L x 31 in. H (500mm W x 1390mm L x 770mm H)
  • Max Push: 1543 lbs. (700kg)
  • Max Speed: 33 ft. /min (10m/min)
  • Controls: Single Lever for Push/Pull Operations
  • Drive System: Hydraulic
  • Min Requirement: 4.75 gpm/870 psi (18 Ltr/min at 60 bar)
  • Weight: 441 lbs. (200kg)
