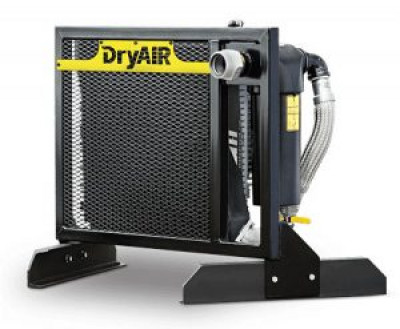

The 400CFM Compressor Aftercooler has been designed to cool compressed air and remove water droplets prior to entering a GMP Cable Blowing Machine.
ADDITIONAL INFORMATION
Features a heavy-duty moisture separator with manual drain for removal of trapped moisture and condensed oil
Completely self-contained and packaged in a construction skid with a lifting bail and expanded metal heat exchanger guard
Boss outlet fitting (Boss 28) and inlet fittings (1-1/2 in. Pipe) are standard
DC fan motor is run from the compressor battery and automatically starts when the system is pressurized
13-foot power cord with alligator clips to connect to the compressor starting battery
Optional 1-micron coalescing filter available
Adaptable stand-alone or tongue-mount design
Compact installation does not interfere with vehicle tailgates, etc.
Cools air to within 20° of ambient temperature to optimize moisture removal
Available in either 12 or 24 volt versions
SPECIFICATIONS
Length:24 in. (610 mm) Width:44 in. (1118 mm) Height:30 in. (762 mm) Weight:170 lbs. (77 kg) Fan Power Requirments9 A, 24 VDC or 18 A, 12 VDC Max Working Pressure200 psi (13.9 bar) Max Air Compressor Flow Rate400 cfm (11 M³/Min) Air Hose ConnectionsOutput: Boss 28
Input: 1-1/2 in. Pipe
