Geotech Positive Displacement Blower Package

PRODUCT DESCRIPTION

Geotech Air Sparge Systems
Geotech Air Sparge Systems are designed to provide positive air pressure into the subsurface thus aiding the volatilization and biodegradation process associated with soil vapor extraction technology.
By injecting air directly into the groundwater, Geotech Air Sparge Systems remediates groundwater by volatilizing contaminants and enhancing biodegradation. Contaminants are removed from groundwater by physical contact with air and are carried up into the unsaturated zone (i.e., soil). As the contaminants move into the soil, a Geotech provided soil vapor extraction system can be used to remove vapors from the subsurface.

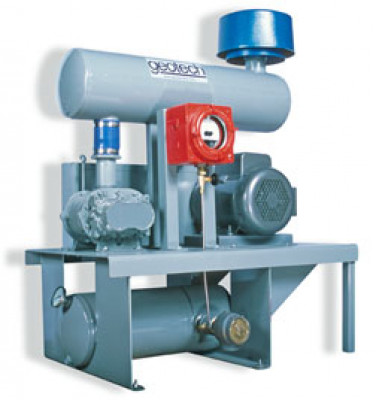

Positive Displacement Blower Package
The Geotech positive displacement blower  systems are custom designed to meet your air flow and air pressure requirements where pressure ranges are within 15 psig
(1 bar) and flow rates up to 2000 cfm (56.63 cmm).

• Positive displacement rotary lobe blower
• Inlet air filter
• Discharge silencer
• TEFC motor
• Horizontal inlet silencer
• V-Belt drive system
• OSHA belt drive
• Motor slide base
• Interconnecting fittings
• Discharge pressure gauge
• Pressure relief valve
• Discharge temperature gauge
• Discharge check valve

OPERATION
By injecting air directly into the groundwater, the Geotech Air Sparge System remediates groundwater by volatilizing contaminants and enhancing biodegradation. Contaminants are removed from groundwater by physical contact with air and are carried up into the unsaturated zone (i.e., soil). As the contaminants move into the soil, a Geotech provided soil vapor extraction system can be used to remove vapors from the subsurface.
