Generator 20Kw

PRODUCT DESCRIPTION

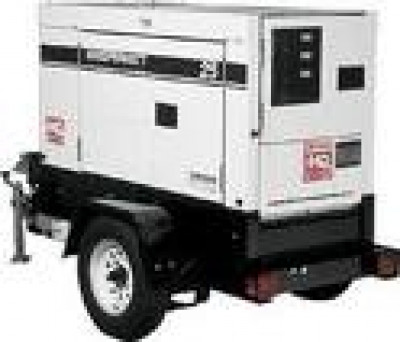

20Kw Portable Generator. Fuel not included. Customer to refill

Unit Specifications
Prime Rating20 kW
Standby Rating22 kW
Generator RPM1800
Voltage - Single Phase120/240 V
Generator DesignRevolving field, Self-ventilated, Drip-proof, Single bearing
Voltage Regulation (No Load to Full Load)±0.5%
Power FactorSeries
Armature ConnectionSeries
ExcitationBrushless with AVR
No. Poles4-pole
Frequency60 Hz
Frequency Regulation (steady state load)±3-5%
Sound Level (Full Load at 23 ft.)65 dB(A)
Engine SpecificationsMake/ModelIsuzu 4L32T
EmissionsTier 4 Final
Starting SystemElectric
Design4-Cycle Water-Cooled, Direct Injection, Charge Air Cooled, EGR, DOC
Gross Engine Power Output40.2 bhp29.9 kW
Fuel Tank Capacity41.7 gal158 L
Fuel Consumption:
   Full load1.62 gph6.1 lph
   3/4 load1.26 gph4.7 lph
   1/2 load0.94 gph3.5 lph
   1/4 load0.67 gph2.5 lph
Coolant Capacity2.3 gal8.8 L
Oil Capacity2.28 gal8.8 L
Battery12V 53Ah x 1
TRLR25US2 Trailer SpecificationsGross Vehicle Weight Rating (GVWR)3,500 lb1,588 kg
Gross Axle Weight Rating (GAWR) (ea.)3,500 lb1,588 kg
Coupler Rating3" Pintle Eye (25,000 lb)
2" Ball Coupler (10,000 lb)
2-5/16" Ball Coupler (14,000 lb)
Tire SizeST205/75D14 LR-C
Tire Load Rating (ea.)1,760 lb789 kg
Wheel Bolt Pattern5 Lug
Fits MQ Power Generator ModelsDCA20SPXU4F
DCA25USI4CAN
DCA25SSIU4F
TRLR25US2 Dimensions & WeightsOverall Length105.79 in2,687 mm
Overall Width56.18 in1,427 mm
Overall Height20.85 in529.6 mm
Operating Weight
Without Fuel444 lb201 kg
TRLR75XF2 Trailer SpecificationsGross Vehicle Weight Rating (GVWR)7,000 lb3,175 kg
Gross Axle Weight Rating (GAWR) (ea.)3,500 lb1,588 kg
Coupler Rating3" Pintle Eye (25,000 lb) 2" Ball Coupler (10,000 lb) 2-5/16" Ball Coupler (14,000 lb)
Tire SizeST205 / 75D15 LR-C
Tire Load Rating (ea.)1820 lb826 kg
Wheel Bolt Pattern5 Lug on 4.5 in
Fuel Tank Capacity100 gal378.54 L
Combined Tank Runtime:
100% Load103 h
Fits MQ Power Generator ModelsDCA70SSJU4F
DCA70SSIU4F
DCA45SSIU4F
DCA40SSKU4F2
DCA36SPXU4F
DCA25SSIU4F
DCA20SPXU4F
DCA15SPXU4F
DCA10SPXU4C
TLG8SSK4F2
DA7000SSA3
TRLR75XF2 Dimensions & WeightsOverall Length151.3 in3843 mm
Overall Width69.3 in1760 mm
Overall Height24.8 in599 mm
Operating Weight
With Fuel2,077 lb942 kg
Without Fuel1,366 lb619.6 kg
