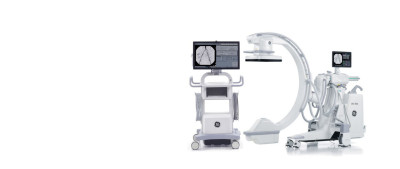

GE OEC Elite CFD 31 cm Mobile C-Arm

DESCRIPTION

The GE OEC Elite CFD 31 cm Mobile C-Arm is a premium surgical imaging system designed for facilities requiring advanced vascular capability, high-resolution flat detector performance, and efficient operating room workflow. Featuring a 31 cm CMOS flat panel detector and Super C configuration with VAS 15 vascular software, the system delivers detailed imaging with fast response and exceptional visualization for interventional and vascular procedures. It supports advanced imaging tools such as digital subtraction angiography (DSA), roadmapping, peak opacification, and motion-tolerant subtraction, while a 32-inch 4K UHD touchscreen display on an articulating arm ensures optimal visibility in the surgical field. With a powerful 15 kW generator, 1.6 MHU tube, active cooling, and enhanced noise reduction, this mobile C-arm provides reliable, high-performance imaging and clinical versatility in demanding surgical environments.


ADDITIONAL INFORMATION

• 31 cm CMOS flat panel detector (CFD) for high-resolution imaging
• Motorized C-arm for smooth, precise positioning
• VAS 15 vascular software with Super C configuration
• Quad-mode magnification with live zoom from 1x to 4x without dose increase
• Digital subtraction angiography (DSA) for vascular imaging
• Roadmapping for guided interventions
• Peak opacification and bolus chase imaging capabilities
• Motion-tolerant subtraction (MTS) for improved image clarity
• Real-time enhancement tools with variable DRM zoom and roam
• Frame-by-frame image review
• Last image hold for workflow efficiency
• Digital cine imaging with high frame rate playback
• Automatic and manual contrast/brightness control
• 32" 4K UHD touchscreen display with anti-reflection and anti-fingerprint coating
• Articulating monitor arm with flexible positioning
• Dual split-screen display capability
• 1-to-1 imaging chain from detector to display resolution
• Enhanced noise reduction (eNR) for improved image quality
• Active X-ray tube cooling for sustained performance
• 1,000-image storage capacity
• High-speed dynamic imaging and playback modes
• Vascular preset imaging profiles
• Re-registration and landmarking tools
• Compact mobile design for operating room use

SPECIFICATIONS

• General
  • System Type: Mobile C-arm imaging system
  • Detector Size: 31 cm CMOS flat panel
  • Software: VAS 15 vascular software
  • Configuration: Super C
• Detector & Imaging
  • Detector Type: CMOS (Complementary metal-oxide semiconductor)
  • DQE(0): 72%
  • Active Matrix: 1548 x 1524 pixels
  • Pixel Pitch: 190 µm
  • Resolution: 2.8–2.9 lp/mm depending on mode
  • Magnification: 31 cm / 21 cm / 15 cm modes
• Display
  • Monitor Size: 32"
  • Resolution: 3840 x 2160 (4K UHD)
  • Brightness: 600 cd/m²
  • Touchscreen: Yes
  • Viewing: Split-screen capability
• X-ray System
  • Generator Power: 15 kW
  • Tube Rating: 1.6 MHU
  • Cooling: Active X-ray tube cooling
• Imaging Performance
  • Dynamic Imaging: Up to 30 fps
  • Cine Pulse Mode: Up to 12 pulses/sec
  • Pulse Width: 10 ms
  • Image Storage: 1,000 images
• Processing & Software
  • Image Processing: 1.5k x 1.5k x 16-bit
  • Noise Reduction: Enhanced (eNR)
  • Standards: DICOM 3.0 compatible
• Physical & Workflow
  • C-arm Motion: Motorized
  • Monitor Mount: Articulating arm
  • Workflow Features: Last image hold, cine review, vascular presets
