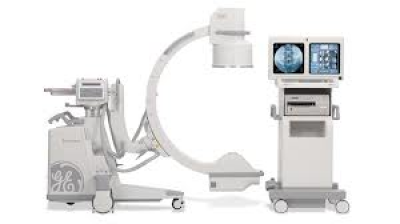

GE 9800 OEC C-Arm

DESCRIPTION

The GE 9800 C-Arm is machine that has stood the test of time.  1,000 x 1,000 pixel resolution, touch screen controls, and various software packages (GSP, ESP, Vascular, Neurovascular, and Cardiac).

The unit that is currently in stock is Vascular


ADDITIONAL INFORMATION

X-Ray System:
Generator:

• 60kHz high frequency
• 15kWpower
• Up to 120kVp
• Up to 75mA for radiographic film exposure
• Continuous high-level fluoro (HLF) up to 20mA
• Digital spot up to 75mA
• Digital cine pulse:
  -15 pulses per second, 60 Hz
  -12 pulses per second, 50 Hz
  -Up to 150mA
  -10ms pulse width
• Full power from standard wall outlet
• Patented Battery buffered design

X-Ray Tube:

• Rotating anode x-ray tube
• 0.3 and 0.6 nominal focal spots
• Anode heat capacity: 300,000 HU
• Anode cooling rate: 85,000 HU/min
• Housing heat capacity: 1,600,000 HU
• 9″ (23cm) Standard C-Arm housing cooling rate 15,000 HU/min
• 9″ (23cm) Super C-Arm and 12″ (31cm) Standard C-Arm housing cooling rate 22,500 HU/min

Digital Image Rotation:

• Digitally adjusts image display
• Image update
  -Image rotation
  -Image reversal (side-to-side)
  -Image invert (top-to-bottom)
• Image positioning without additional exposure

PreView Collimator:

• On-screen collimator position indication
• PreView iris collimator
• PreView Tungsten rotatable double leaf collimator
• Adjusts collimators without x-ray exposure

Fluoro Mode:

• kVp range: 40-120
• mA range:
  -0.2-10 normal mode
  -0.2-20 HLF (high level fluoro)
• Auto and manual fluoro modes
• AutoTrak ABS varies mA, kVp, camera gain

Pulsed Fluoro Mode:

• kVp range: 40-120
• mA range: 0.2 -10
• Pulse rate: 1, 2, 3, 8
• Pulse width: 25 or 50 ms
• AutoTrak ABS, mA, kVp, camera gain
• Reduces x-ray dose to patient and operator

High Level Pulsed Fluoro:

• kVp range: 40-120
• mA range: 0.2-40
• Pulse rate: 1, 2, 4, 8
• AutoTrak ABS, mA kVp, and camera gain

Digital Cine Pulse Mode:

• kVp range: 40-120
• mA range: up to 150
• Pulse rate: 15 pps (60 Hz), 12 pps (50Hz)
• Pulse width: 10ms
• AutoTrak ABS, mA, kVp, camera gain

Digital Spot Mode:

• kVp Range: 40-120
• mA range: up to 75
• Automatic exposure termination and automatic image save

Radiographic Mode:

• mA range: up to 75
• mAs range: up to 300
• Computer controlled exposure time
• Optional film casette holder
  -10×12″ for 9″ II
  -14×14 for 12″ II

Video Imaging System:
9″ Image Intensifier:

• Tri-mode 9″/6″/4.5″ (23cm/15cm/11cm) image intensifier
• Minimum central resolution (at the monitor):
  -9″ (23cm): 2.1 lp/mm
  -6″ (12cm): 2.9 lp/mm
  -4.5″ (11cm): 3.4 lp/mm
• DQE: 65% (typical)

12″ Image Intensifier:

• Tri-mode 12″/9″/6″ (31cm/23cm/15cm) image intensifier
• Minimum central resolution (at the monitor):
  -12″ (31cm): 1.5 lp/mm
  -9″ (23cm): 2.1 lp/mm
  -6″ (12cm): 2.9 lp/mm
• DQE: 65% (typical)

Autotrak Automatic Brightness Stabilization (ABS):

• Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
• Automatically adjust to anatomical size and location
• Provides uniform image quality throughout entire image
• Simplifies operation

Image I.Q.:

• Smart Window:
  -Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality.
• Smart Metal:
  -Allows user to adjust automatic brightness and contrast sensitivity levels to metal
  -Provides optimum image quality even when metal is introduced to the field
• Tungsten Collimator:
  -Denser collimator limits x-ray exposure area
  -Reduces scatter radiation
  -Improves image detail

Video Camera:

• High resolution 1k x 1k CCD camera
• Full frame capture
• Motorized rotation
• On-screen orientation indicator (real-time feedback without fluoro)
• Left-right image reversal
• Top-bottom image invert

Video Display (OEM Factory):

• Dual 16″ (41cm) square monitors
• Anti-glare, progressive full frame scan monitor
• Touch screen system control
• 1,000 line high resolution monitors
• Ambient room-light compensation

Video Display (Upgraded Retrofit Kit):

• 32″ LED Lit LCD Display With Dual Screen Capabilities
• Anti-glare, progressive full frame scan monitor
• Touch screen system control
• 2 Mega Pixel high-resolution output
• Ambient room-light compensation
•

Configurations:
GSP (General Surgical Package) Platform:

• 1k x 1k x 16 bit image processing
• Noise filter with on-screen indicator
• Real-time variable edge enhancement
• Automatic digital brightness and contrast control
• Negate mode
• Save and auto-save feature
• Swap and auto-swap feature
• Patient information
  -Examination list
  -Customized patient information
• Customize functions:
  -Workstation set-up
  -Mainframe set-up
  -Patient information set-up
  -Date/time set-up
  -DICOM 3.0 interface set-up
• Last image hold
• 63 image storage
• Integrated DICOM interface (store, print, worklist)
• HIPAA SecureView:
  -Password protection
  -Blank screen function
  -Delete all

ESP (Expanded Surgical Package) Platform:
Includes all the GSP features and:

• 200 or 400 image storage
• Zoom and roam function
• Image annotation
• Measure software

PMCare Platform:
Includes all the ESP features and:

• Real-time digital subtraction (DSA)
• Peak opacification
• 8fps dynamic digital disk
  -Recording /playback rate: 1, 2, 4, 8fps
  -Recording time:  5 minutes @ 8fps

Vascular Platform:
Includes all the ESP features and:

• Real-time digital subtraction (DSA)
• Roadmapping
• Peak opacification
• Re-registration
• Variable landmarking
• Mask save/recall
• Auto cine loop playback
• Digital cine pulse mode:
  -15 pulses/sec
  -Up to 150mA
  -10ms pulse width
• 15fps dynamic digital disk:
  -Recording/playback rate: 1, 2, 4, 8, 15fps
  -Recording time: 10 minutes @ 15fps (time depends on record frame rate)

Neuro-Vascular Platform:
Includes all the Vascular features and:

• 30fps dynamic digital disk:
  -Recording/playback rate: 1, 2, 4, 8, 15, 30fps
  -Recording time: 10 minutes @ 30fps (time depends on record frame rate)

Cardiac Platform:
Includes all the Neuro-Vascular features and:

• Single leaf curved collimator
• Three pedal footswitch
• Upgraded x-ray tube cooling

Additional Features:
Super-C Configuration:

• Adds Larger “C” for increased orbital rotation (145 degrees)
• Increased Arc Depth (33″ / 838mm)

MD Configuration:

• Adds motorized movements of c-arm

Other Image Storage Options:

• CD/DVD Writer digital interface (external)
• Integrated DICOM 3.0 interface

Hardcopy Options:

• Integrated film/paper printer
  -No film developing required
  -8×10″ (20.3cm x 25.5 cm) laser quality film/paper
  -Multi-format, 1,2, 4 on 1
  -Multi-copy capability
• Thermal printers

User Interface:

• Entire system is computer controlled and sofware upgradeable
• Touchscreen control simplifies operation
• Automated system operation requires minimum operator interface
• Multi-functional controls
  -Footswitch
  -IR remote (optional)
  -Hand-held control
• Simplified keyboard
• Multi-Purpose image directory
  -Retrieve and review images
  -Compose hardcopy films
  -Copy images
• X-ray dose summary

Electrical:

• Input power (69Hz ir 50Hz)
  -100v @ 20 A (Japan)
  -120V @ 12 A
  -200V, 220V, 230V, 240V @ 10 A

Regulatory Compliance:

• U.S. 21 CFR Subchapter K
• NFPA 99
• UL 60601-A (CSA/NRTL)
• IEC60601-1 (plus relevant collateral and particular standards)
