FOERSTER 2.069 Eddy Current Instrument | Rent, Finance, or Buy

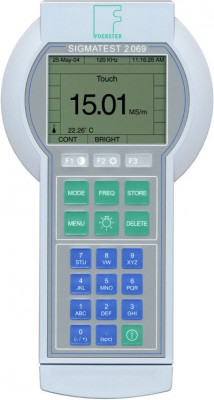

FOERSTER SIGMATEST 2.069 Kit with 14 mm Probe (For Electrical Conductivity measurement) (9081172) without Batteries and Charger

FOERSTER SIGMATEST 2.069 Kit with 14 mm Probe (For Electrical Conductivity measurement) (9081172) without Batteries and Charger
Product Specifications
BRAND  FOERSTER
MODEL  2.069
APPLICATION Electrical Conductivity
APPLICATION Electrical Conductivity
DESCRIPTION
The SIGMATEST® 2.069 is an eddy current instrument that measures the electrical conductivity of non-ferromagnetic metals based on the complex impedance of the measuring probe. The SIGMATEST 2.069 compensates for temperature related electrical conductivity variations.


ADDITIONAL INFORMATION
Technical Data
  • Measurement range:0.5 to 65 MS/m (1 to 112 % IACS)
  • Absolute accuracy - instrument only:+/-0.5 % of measured value
  • Resolution:+/-0.1 % of measured value
  • Distance correction:Up to 500 μm (0.020 inch)
  • Operating frequencies:60, 120, 240, 480, 960 kHz
Your advantages at a glance
  • Easy operation
  • Five measuring frequencies: 60, 120, 240, 480, 960 kHz
  • Internal and external temperature compensation
  • Measurement possible up to 0.5 mm distance from the test item
  • Measurement range from 0.5 to 65 MS/m (1 - 112 % IACS)
  • 20 measurements per second
  • Multilanguage operating system
  • Remote control via RS-232 port or Ethernet port
  • Robust device design for operation on site
