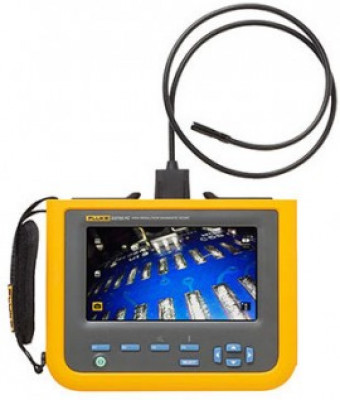

This model has true 720p resolution video recording, a 7" capacitive touch screen and incorporates the Fluke Connect™ system. It also features an adjustable LED light, digital zoom for quality images and is great for accurate inspections in difficult to reach spaces.
Features
- True 720p video
- 7” capacitive touch screen
- Wi-Fi capability
- 1280 x 720 resolution
- Rugged and designed to stand up to the dirtiest, most harsh environments
- Intuitive user interface
- Easy to navigate button technology
- High definition probe with dual-view camera
- Processing speeds that render a smooth, clear, consistent image
- Macro to micro zoom function
- Adjustable lighting to capture the best image
- Up is Up™ technology for an appropriate orientation, regardless of the probe location (1.2 meter probe only)
- Fluke Connect™ allows you to save and share images directly from the diagnostic videoscope
Technical Specifications:
Videoscope Probe
Length: 1.2 m (3.94 ft)
Type: Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth
Diameter: 8.5 mm (0.33")
Lighting: Adjustable LED, on front, one side
Illumination: 53 Lux
Up is Up™ Technology: Appropriate image display, regardless of the orientation of the probe, 8.5 mm, 1.2 m probe only
Camera
Resolution: 1200 x 720 (864,000 pixels)
Digital zoom: Adjustable from 1x to 8x zoom
Field of view: 68°
Depth of field: 25 mm to infinity
Video Resolution: 720 p
Rotation: 180°
Streaming Video: Via HDMI and Fluke Connect™
General Specifications
Color palettes: Visible light, grayscale or inverted
Internal memory: 6 GB
Dimensions: 6.98 x 8.85" (17.73 x 22.48 cm)
Weight: 1.95 lbs (0.88 Kg)
