Best in class clamp meter with 0.2% accuracy, 0.01mA resolution and sensitivity.

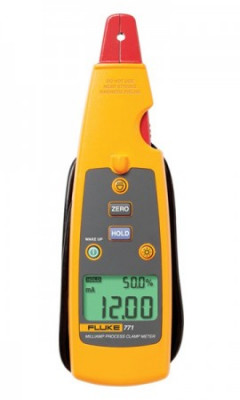

The Fluke 771 mA clamp meter is designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
Features
Measure 4 to 20 mA signals without "breaking the loop"
Best in class 0.2% accuracy
0.01 mA resolution and sensitivity
Measure mA signals for PLC and control system analog I/O
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatically change the 4 to 20 mA output for remote testing
Power saving features, auto-off, backlight timeout extend battery life
Applications
Petro-Chemical
Oil and Gas
Food and Beverage
Pharmaceutical
Specifications:
Resolution/Range: 0 to 20.99 mA
Accuracy: 0.2% + 2 counts
Resolution/Range: 21.0mA to 100.0 mA
Accuracy: 1% + 5 counts
Diameter of Measurable Conductor: 0.177" (4.5mm) max
IP Rating: IP 40
