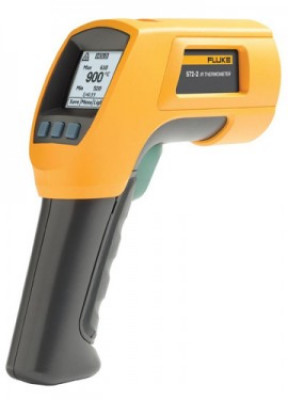

Fluke 572-2 High Temperature Infrared Thermometer, -22 to 1652｡F

DESCRIPTION

This high-temperature infrared thermometer is built for use in high-temperature industrial environments. It has a straight-forward user interface and soft-key menus, making even complex measurements easier. Quickly navigate and adjust emissivity, start data logging, or turn on and off alarms, with just a few pushes of a button. Ideal for high-temperature industrial environments whether it's power utility, metal refining and smelting, glass, cement or petrochemical environments.

Features

• 60:1 distance to spot ratio with dual laser sighting for fast, accurate targeting
• Multi-language interface (user select)
• Current Temperature plus MAX, MIN, DIF, AVG temperature displays
• Compatible with standard mini-connector K-type thermocouples
• Adjustable emissivity and predefined emissivity table
• Infrared and thermocouple temperature on backlit display
• Last reading Hold (20 seconds)
• High and low temperature alarm
• Data storage and review (99 data sets)
• Tripod mount
• 12 or 24 hour clock
• USB 2.0 computer interface cable
• FlukeView® Forms Documenting Software

Infrared Measurements
Temperature Range:  -22 to 1652°F (-30 to 900°C)
IR Accuracy (calibration geometry with ambient temperature 23°C ±2°C):
               ≥32°F: ±2°F or ±1% of the reading, whichever is greater
               ≥14°F to <32°F: ±4°F
               <14°F: ±6°F
                ≥0°C: ±1°C or ±1 % of the reading, whichever is greater
                ≥-10°C to <0°C: ±2°C
                <-10°C:±3 °C
IR Repeatability:  ±0.5% of reading or ±1°F (±0.5°C), whichever is greater
Display Resolution:  0.1°F/0.1°C
Distance Spot:  60:1 (calculated at 90% energy)
Minimum Spot Size:  0.75" (19 mm)
Laser Sighting:  Offset dual laser, output <1 mW
Spectral Response:  8 µm to 14 µm
Response Time:   (95%)<500 ms
Emissivity:  Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials
Contact Measurements
K-Type Thermocouple Input Temperature Range:  -454 to 2501°F (-270 to 1372°C)
K-Type Thermocouple Input Accuracy:  <-40°F: ±(2°F + 0.2°/1°F)
                                                                ≥-40°F: ±1% or 2°F, whichever is greater
                                                                <-40°C: ±(1 °C + 0.2°/1°C)
                                                                 ≥-40°C: ±1% or 1°C, whichever is greater
K-Type Thermocouple:  0.1°F/0.1°C
K-Type Thermocouple Repeatability:  ±0.5% of reading or ±1°F (±0.5°C), whichever is greater
Measurement Options
Hi/Low Alarms:  Audible and two-color visual
Min/Max/Avg/Dif:  Yes
Switchable Celsius and Fahrenheit:  Yes
Backlight:  Two levels, normal and extra bright for darker environments
Probe Input:  K-type thermocouple simultaneous display of probe and IR temperature
Trigger Lock:  Yes
Data Storage:  99 points
Display:  Dot matrix 98 x 96 pixels with function menus
Communication:  USB 2.0
K-Type Thermocouple Specifications
Measurement Range (Bead Probe):  -40 to 500°F (-40 to 260°C)
Accuracy:  ±2.0°F (±1.1°C) from 32 to 500°F (0 to 260°C)
                  Typically within 2.0°F (1.1°C) from -40 to 32°F (-40 to 0°C)
Cable Length:    40" (1 m) K-type thermocouple cable with standard miniature thermocouple connector and bead termination
General Specifications
Safety and Compliance: IEC 60825-1;  FDA Laser Class II;  IEC 61326-1;  CE Complaint;  CMC # 01120009
Operating Temperature:  32 to 122°F (0 to 50°C)       Storage Temperature:  -4 to 140°F (-20 to 60°C)
Relative Humidity:  10 to 90% RH non-condensing up to 86°F (30°C)
