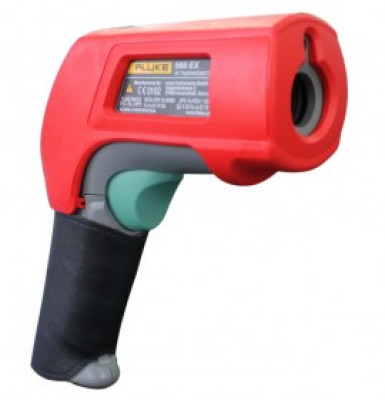

The Fluke 568 Ex Intrinsically Safe Infrared Thermometer is the one product you can use in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous environments anywhere in the world. Whether you work in petroleum, chemical, oil and gas, or pharmaceutical environments, the 568 Ex allows you to carry the most trusted name in test tools into most Ex rated areas all around the globe.
Features
- Meets intrinsically safe certifications in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous environments from recognized safety agencies around the world
- Measure -40 to 800°C / -40 to 1472°F
- Conductive Case for carrying the IR thermometer safely into hazardous area
- Easily access advanced features with the soft-key buttons and graphical display
- Measure small objects from further away, with a distance-to-spot ratio of 50:1
- Compatible with mini-connector K-type thermocouple (KTC) probe
- Confidently measure a wide variety of surfaces with the adjustable emissivity feature, including a built-in material table
- Capture up to 99 points of data
- Confidently troubleshoot equipment with ±1% measurement accuracy
Specifications
Infrared temperature range: -40 °F to 1472 °F (-40 °C to 800 °C)
Infrared accuracy: < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F);
> 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), [whichever is greater].
Display resolution: 0.1 °C / 0.1 °F
Infrared spectral response: 8 µm to 14 µm
Infrared response time: < 500 ms
D:S (distance to measurement spot size): 50:1
Thermocouple type-k input temperature range: -270 °C to 1372 °C (-454 °F to 2501 °F)
Thermocouple type-k input accuracy: <-40 °F: ±(2 °F + 0.2 °/1 °F)
>-40 °F: ±1 % or 2 °F, whichever is greater
Laser sighting: Single-point laser
Minimum spot size: 19 mm (0.75 in)
Emissivity adjustment: By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage: 99 points
Hi/Low alarms: Audible and two-color visual
Min/Max/Avg/Dif: Yes
Trigger lock: Yes
Battery life: 4 hours with laser and backlight on; 100 hours with laser and backlight off, at 100 % duty cycle
Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
Power: 2 AAA/LR03 type-approved batteries (For list of type-approved batteries, see Product Safety Instructions.)
