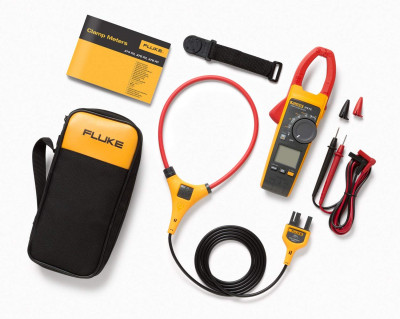

Fluke 376 FC TRMS AC/DC Clamp Meter, 1000A/1000V

DESCRIPTION

Clamp meter measures true-rms AC current and voltage, DC current and voltage, inrush current, resistance, capacitance, frequency and DC millivolts. The included detachable iFlex current probe expands the measurement range to 2500A AC, CAT IV 600V, CATIII 1000V safety rated. Part of the Fluke Connect family of wireless test tools.

Often the most frustrating task for electricians and maintenance technicians is to troubleshoot intermittent faults because they rarely occur at convenient times. The Fluke 376 FC logs measurements to pinpoint intermittent faults precisely and without the need for the technician to be present. Those measurements are then wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud, keeping technicians outside the arc flash zone and away from dangerous moving machinery, improving safety.

Features

• Capture measurements outside the arc flash zone with Bluetooth connectivity to your Apple or Android devices
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Read measurements on your phone at a safe distance, wearing less Personal Protective Equipment (PPE) while your meter takes all the risks
• Capture intermittent faults while performing other tasks using the logging capabilities
• Integrated VFD low-pass filter for accurate motor drive measurements
• Expand the measurement range to 2500 A ac with the iFlex flexible current probe, which also provides access to large conductors in tight spaces
• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True-rms voltage and current for accurate measurements on non-linear signals
• 500 mV dc measurement range to interface with other accessories
• Min, max, average, and in-rush recording to capture variations automatically

Fluke 376 FC Specifications

CAT Rating:               CAT III 1000V, CAT IV 600V
Current AC Range:    999.9A with clamp jaws
                                   2500A with iFlex flexible current clamp
Current DC Range:    999.9A
Best Resolution:         0.1A
Voltage Range:          1000V AC/DC
mV DC Range:           500mV
Ohms Range:             60.00kΩ
Frequency:                 5 to 500.0Hz
Capacitance:              1μF to 1,000μF
