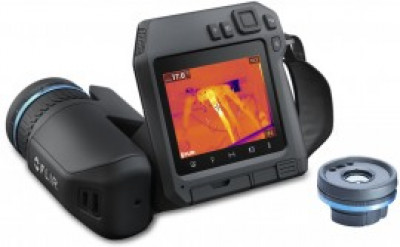

FLIR T530-24 Thermal Imaging Camera with 24° Lens, 320 x 240

DESCRIPTION

The T530 is designed to support advanced thermographers and IR service consultants in the power generation, electrical distribution, and manufacturing industries by focusing on resolution, speed, and ergonomics. With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T500-Series offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access

Specifications:
IR Resolution:                     320 x 240 (76,800 pixels)
UltraMax® Resolution:       307,200 effective pixels
Digital Zoom:                      1-4x continuous
Detector Type and Pitch:    Uncooled microbolometer, 17 µm
Thermal Sensitivity/NETD:  <30 mK @ 30°C (42° lens)
Spectral Range:                  7.5 to 14.0 µm
Image Frequency:               30 Hz
Focus:                                 Continuous, one-shot with laser distance meter (LDM), one-shot contrast, manual
Minimum Focus Distance:   24° lens: 0.5 m; optional macro mode
Digital Camera:                   5 MP, with built-in LED photo/video lamp
Color Palettes:                    Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image Modes:                     Infrared, visual, MSX®, Picture-in-Picture
Voice Annotation:                60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
METERLiNK®:                    Yes
