The

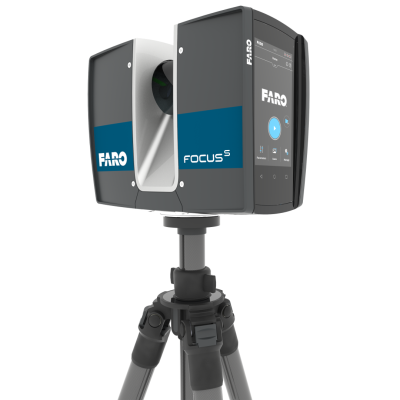

FARO Focus S70 is a high-precision, short-range 3D laser scanner engineered for detailed reality capture in architecture, engineering, construction, product design, and forensic applications. As part of FARO’s renowned Focus S Series, the S70 delivers accurate and reliable 3D data for indoor and outdoor environments, with intuitive operation and robust design.
ADDITIONAL INFORMATION
With a scanning range of up to
70 meters, the Focus S70 is ideal for capturing small to mid-sized projects, such as building interiors, crime scenes, mechanical rooms, cultural heritage preservation, and manufacturing layouts. Its compact, lightweight design makes it easy to transport and deploy, while advanced features like HDR photo capture, extended battery life, and Wi-Fi connectivity ensure efficient field workflows.
The S70 also includes
Incorporated On-Site Compensation for quick and precise scanner calibration and
IP54-rated environmental protection, making it reliable in dusty or humid conditions. It seamlessly integrates with FARO SCENE software and other industry-leading CAD and BIM applications for complete data processing and modeling solutions.
Key Specifications – FARO Focus S70
- Range: 0.6 – 70 meters
- Range Accuracy: ±1 mm
- Measurement Speed: Up to 976,000 points/second
- Noise Level: 0.3 mm @ 10 m; 0.3 mm @ 25 m
- Color Capture: Integrated HDR camera with up to 165 megapixels
- Field of View: 300° (vertical) × 360° (horizontal)
- Angular Accuracy: 19 arcsec
- Laser Class: Class 1, eye-safe
- Environmental Rating: IP54 (dust- and splash-resistant)
- On-Site Compensation: Built-in for real-time calibration
- Operating Temperature: –5°C to +40°C (23°F to 104°F)
- Weight: 4.2 kg (9.26 lbs) without accessories
- Size (H × W × D): 230 × 183 × 103 mm (9.05 × 7.2 × 4.05 in)
- Power Supply: Hot-swappable batteries, up to 4.5 hours per battery
- Connectivity: WLAN, SD card storage
